Truss & Rigging

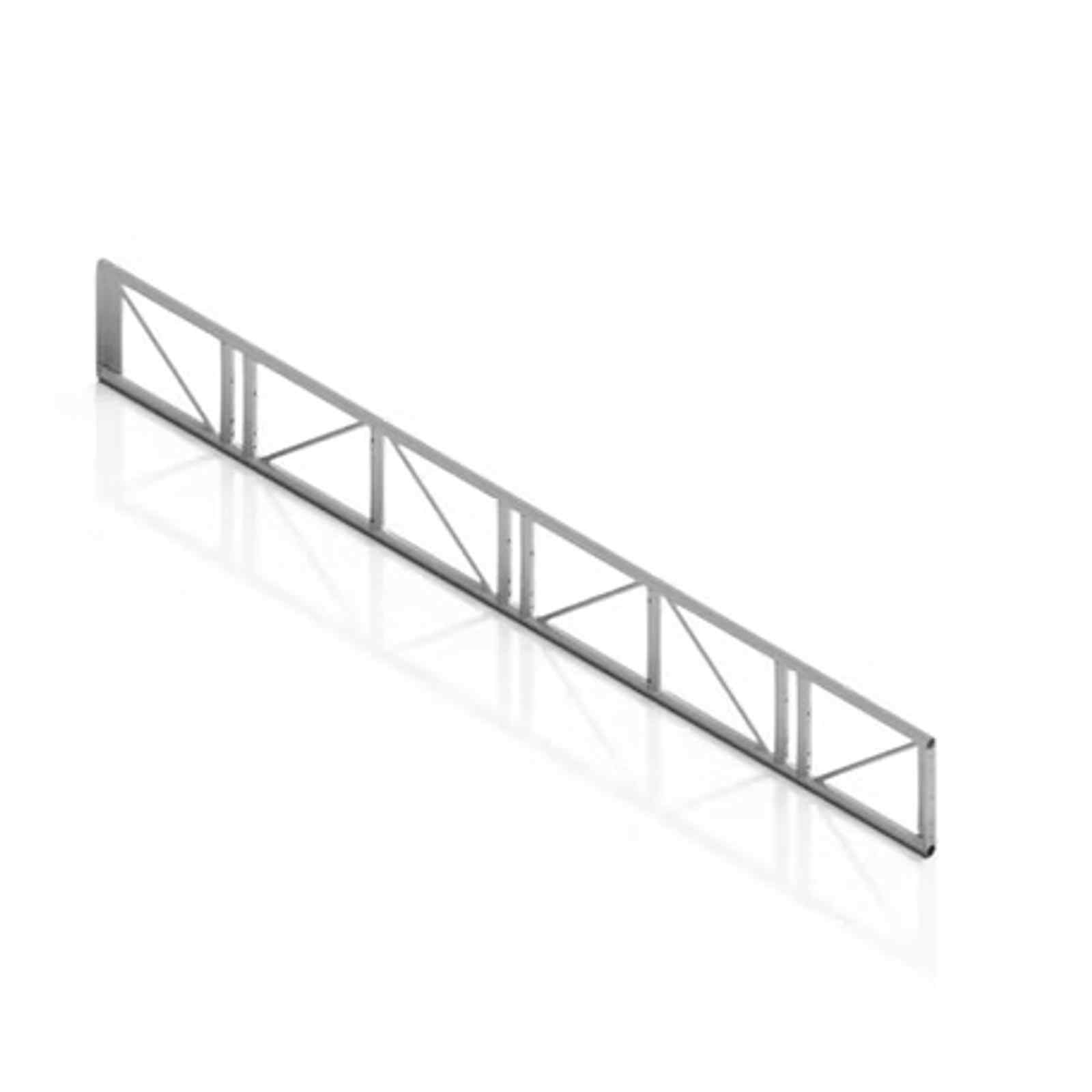

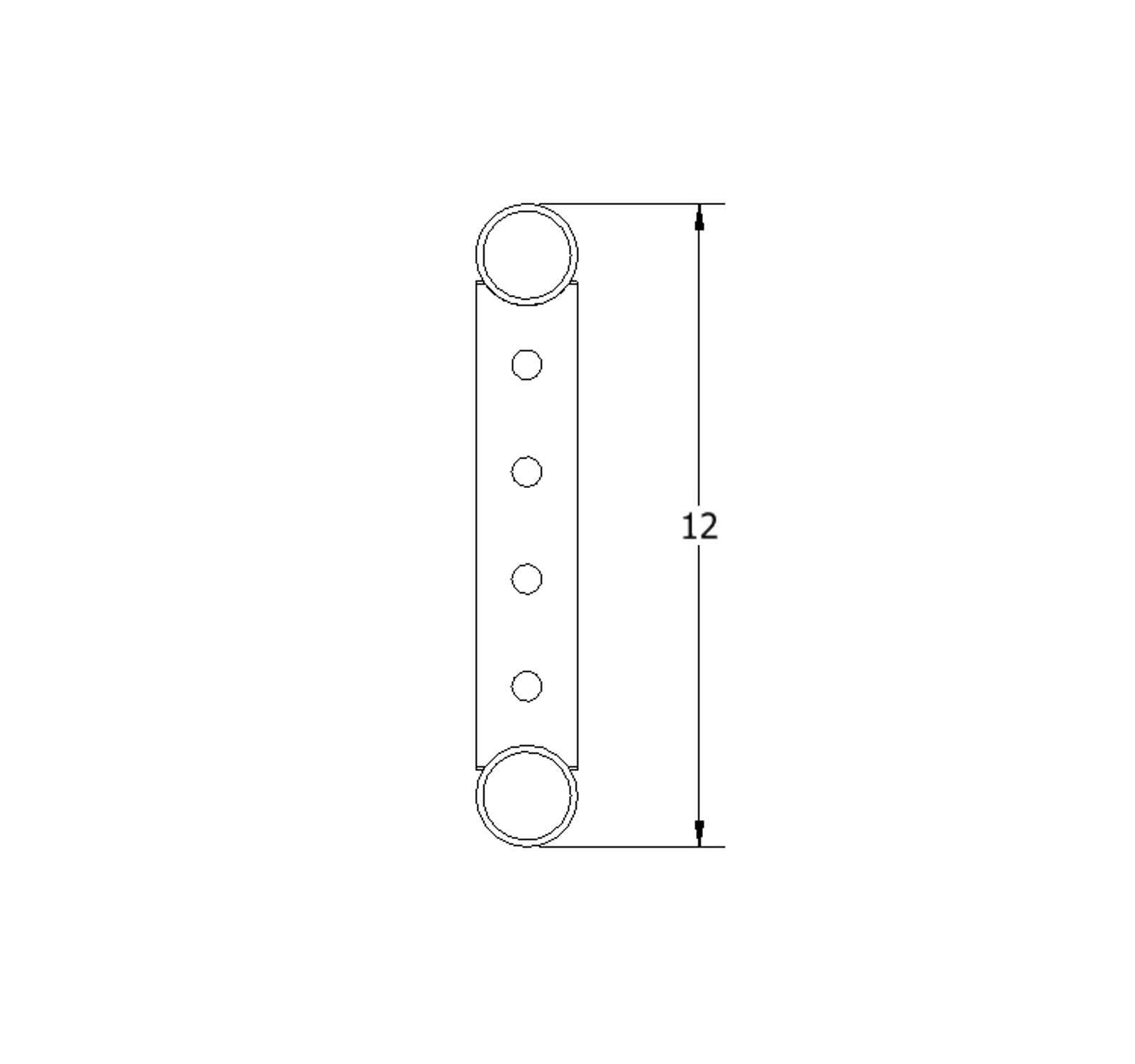

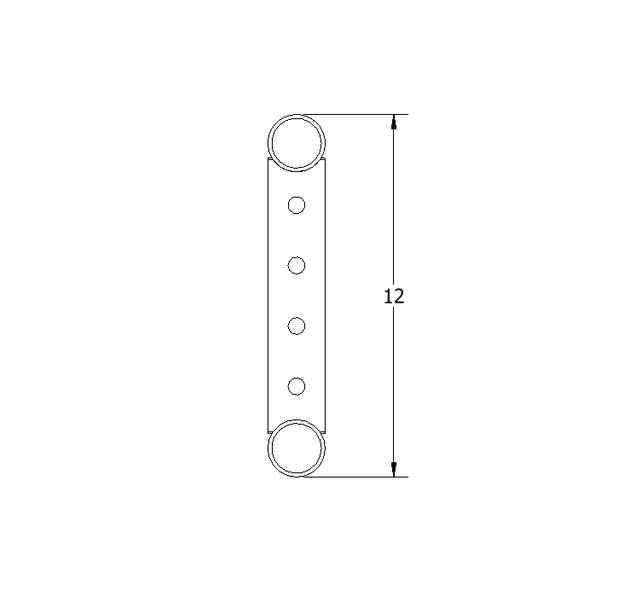

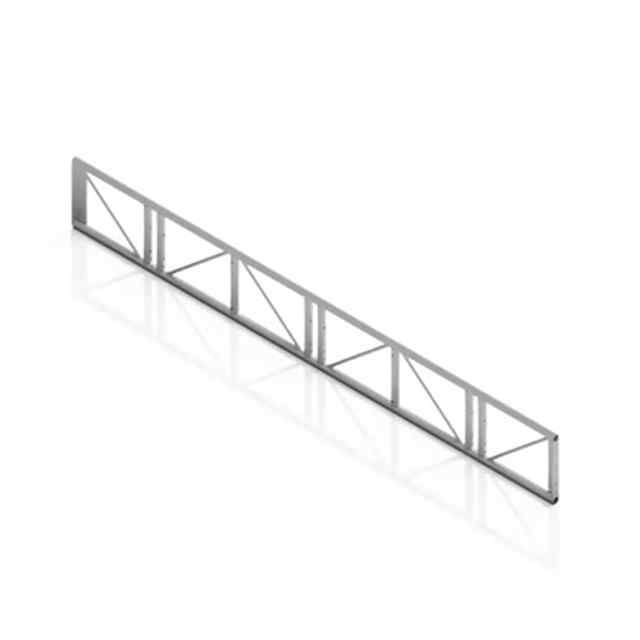

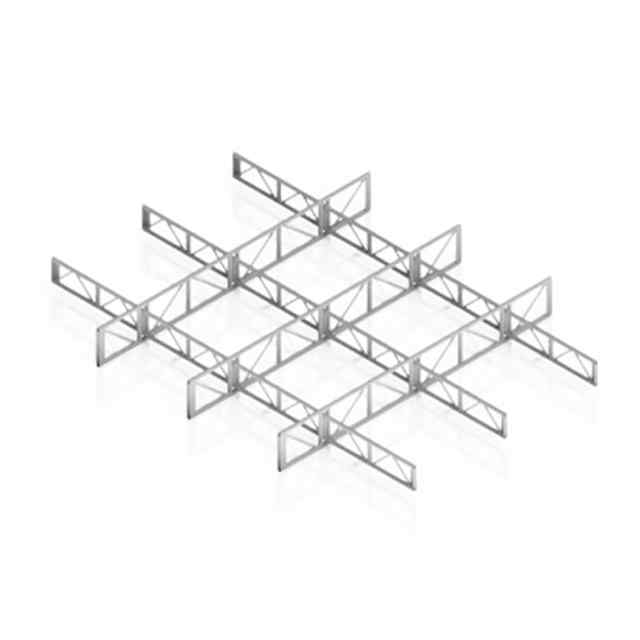

12in Ladder Beam



12in Ladder Beam
Product Info
- 1 1/2" Sch. 40 Aluminum Pipe Construction

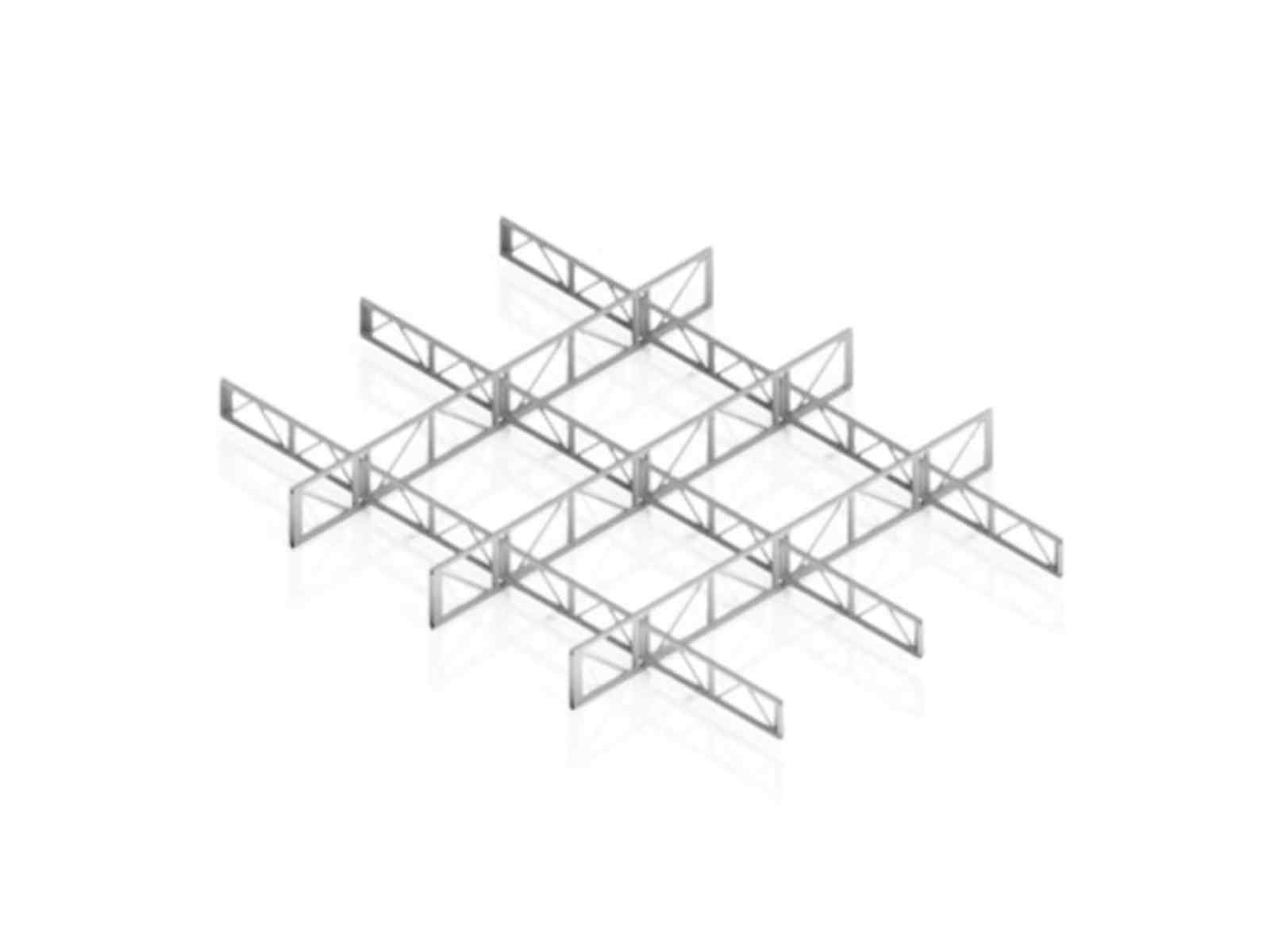

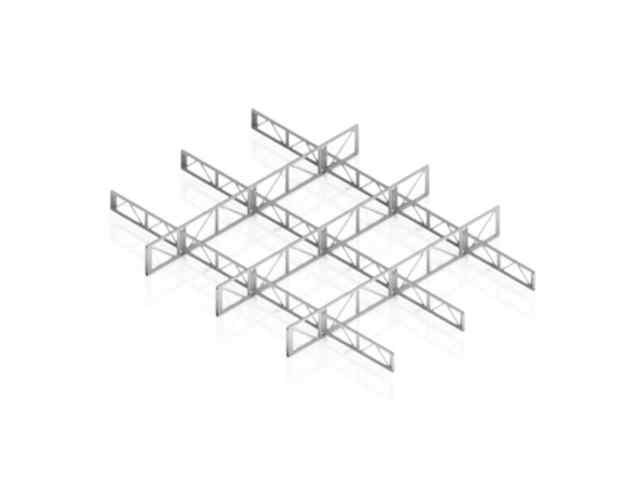

- Serves As Inner Members of Speed Grid System
- Various Pin Connection Locations
- Standard Lengths:
- 4ft
- 6ft
- 8ft
- 10ft
- 12ft
- 16ft
- 20t

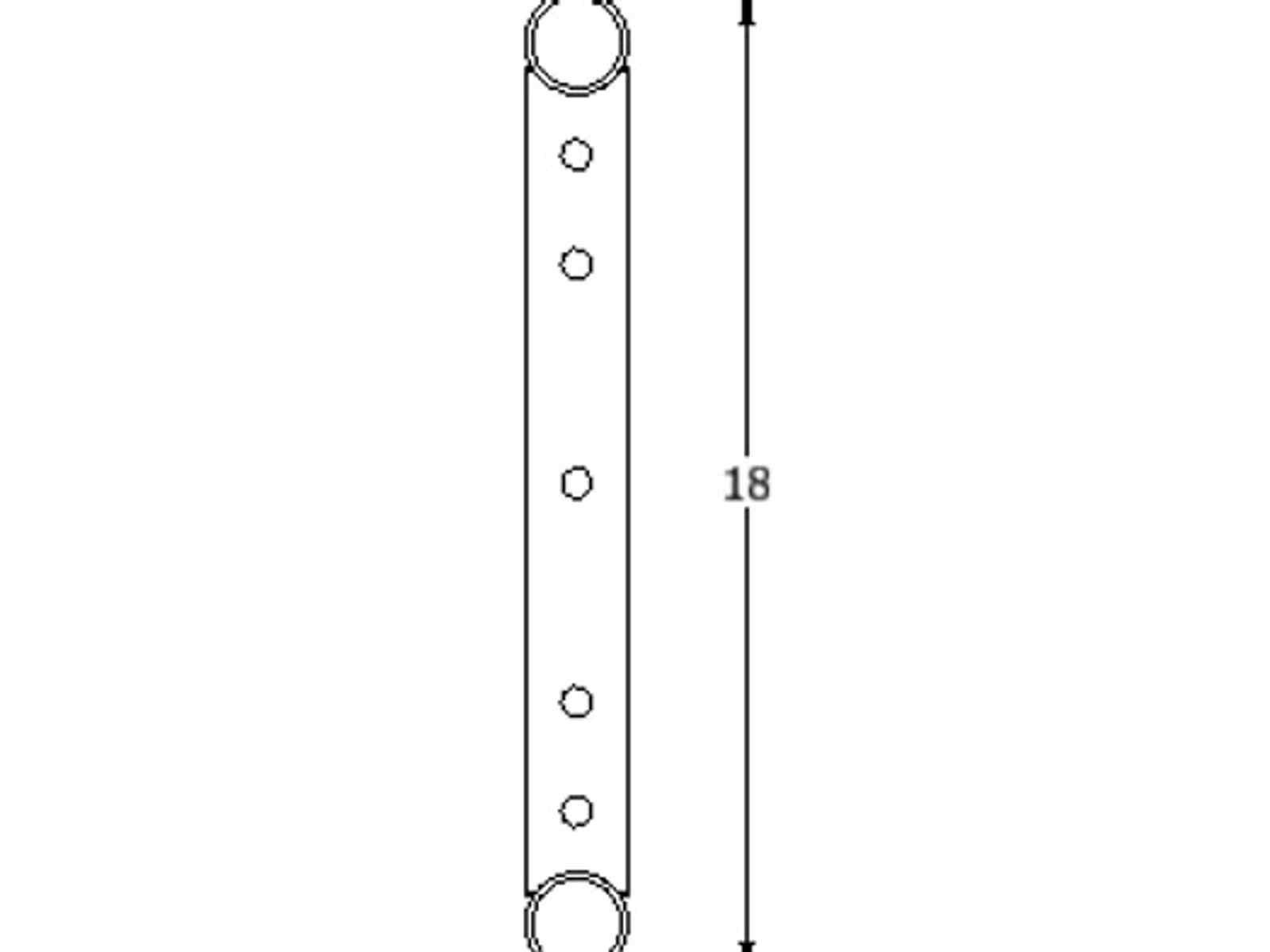

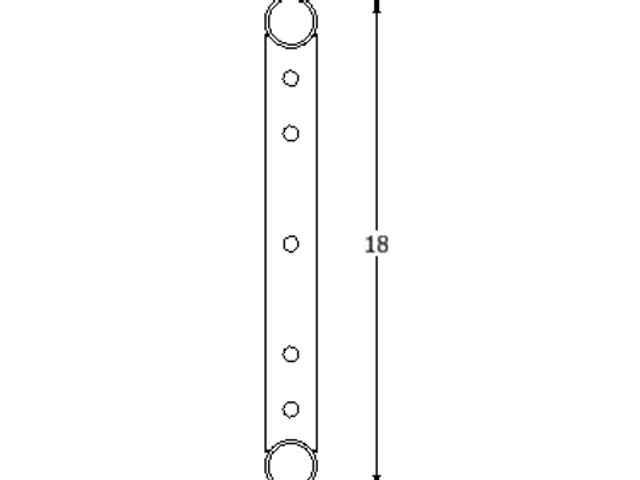

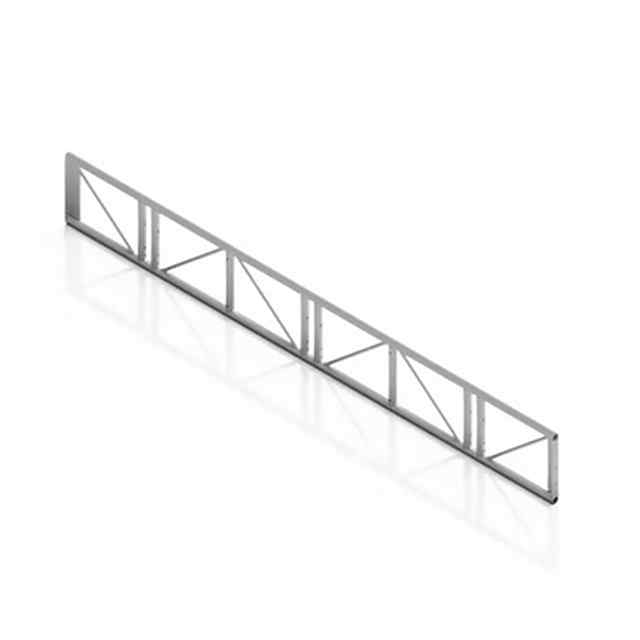

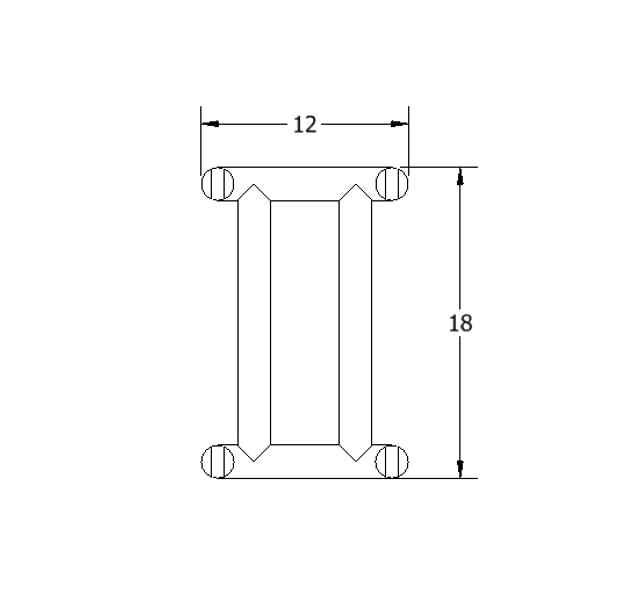

18in Ladder Beam



18in Ladder Beam
Product Info
- 1 1/2" Sch. 40 Aluminum Pipe Construction
- Serves As Outer Members of Speed Grid System
- Various Pin Connection Locations
- Standard Lengths:
- 4ft
- 8ft
- 10ft
- 12ft
- 20t

18in Ladder Beam



18in Ladder Beam
Product Info
- 1 1/2" Sch. 40 Aluminum Pipe Construction
- Serves As Outer Members of Speed Grid System
- Various Pin Connection Locations
- Standard Lengths:
- 4ft
- 8ft
- 10ft
- 12ft
- 20t

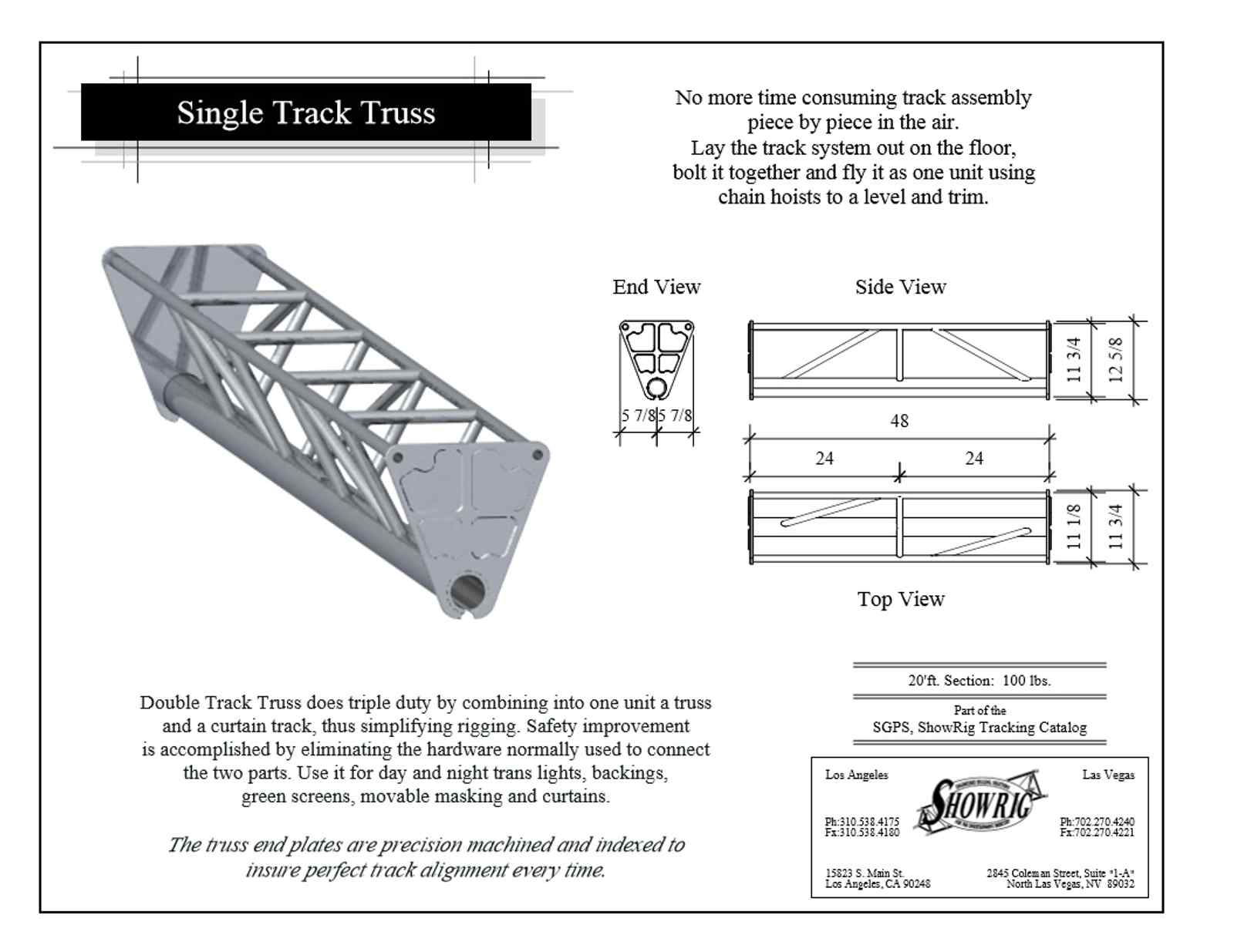

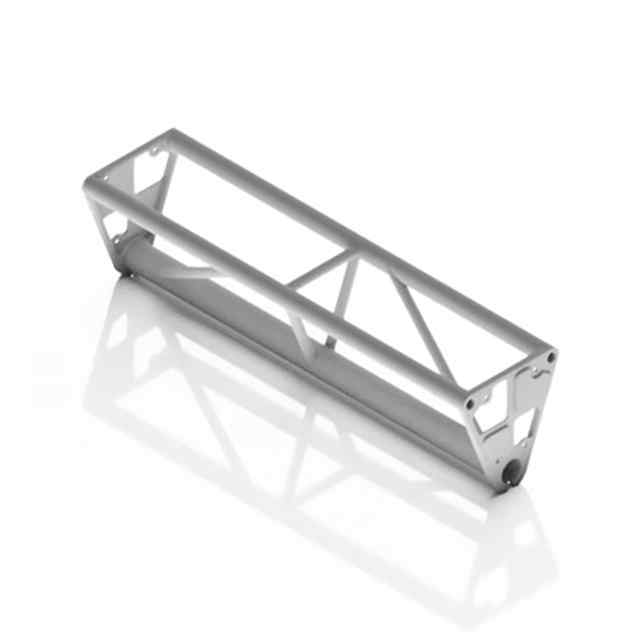

Single Track Truss




Single Track Truss
Product Info
- Combines Curtain Track With Truss Unit
- Indexed End Plate for Perfect Alignment
- Whole System Can Be Pre Assembled and Flown Out
- Available In Straight and Curved Sections
- For Use With:
- Translighting
- Backings
- Green Screens
- Movable Masking and Curtains

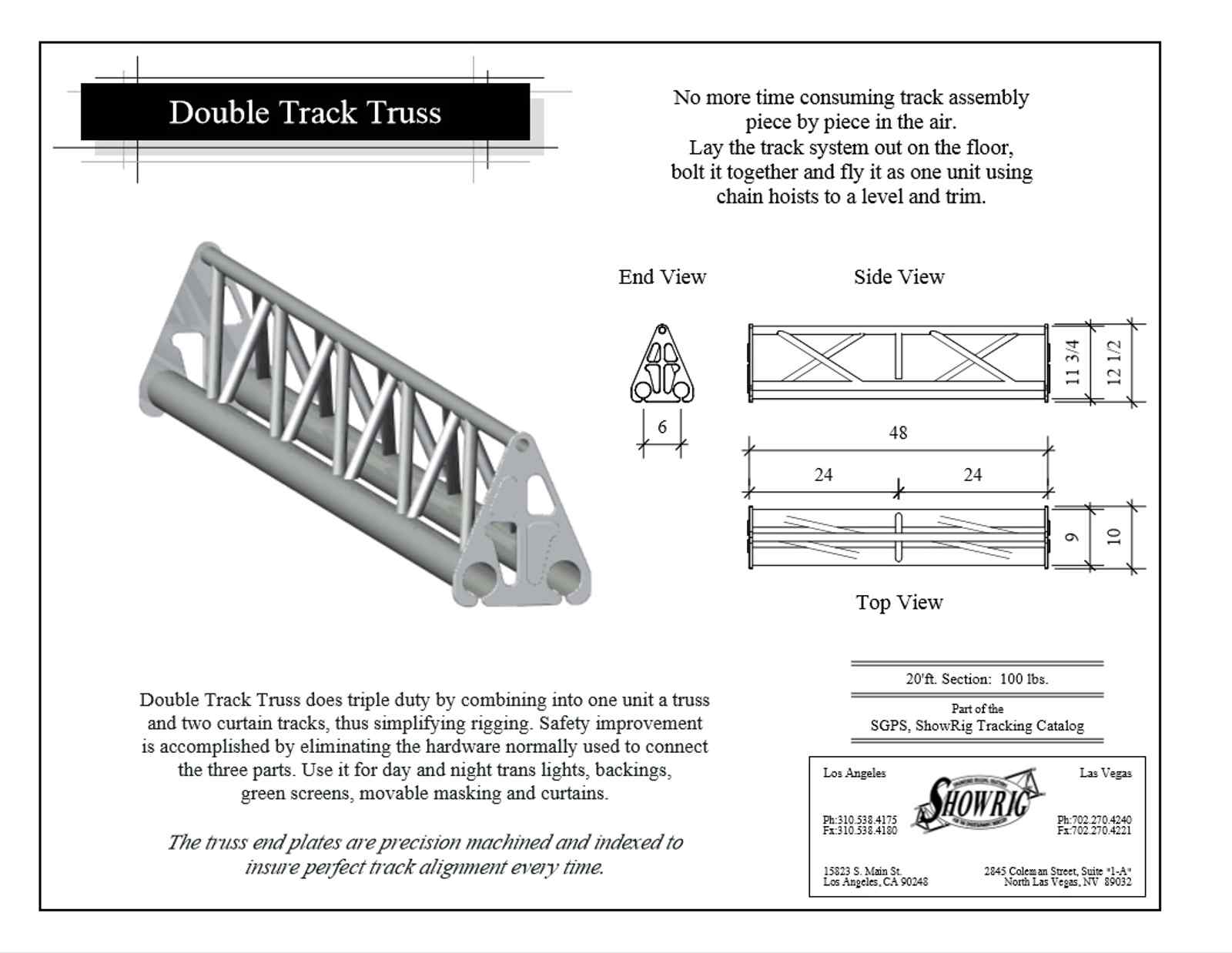

Double Track Truss




Double Track Truss
Product Info
- Combines Two Curtain Tracks In One Truss Unit
- Indexed End Plate for Perfect Alignment
- Whole System Can Be Pre Assembled and Flown Out
- Available In Straight and Curved Sections
- For Use With:
- Translighting
- Backings
- Green Screens
- Movable Masking and Curtains

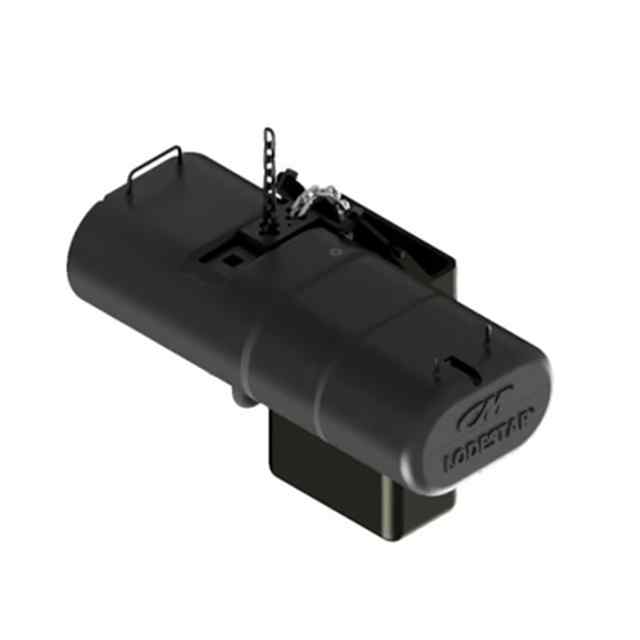

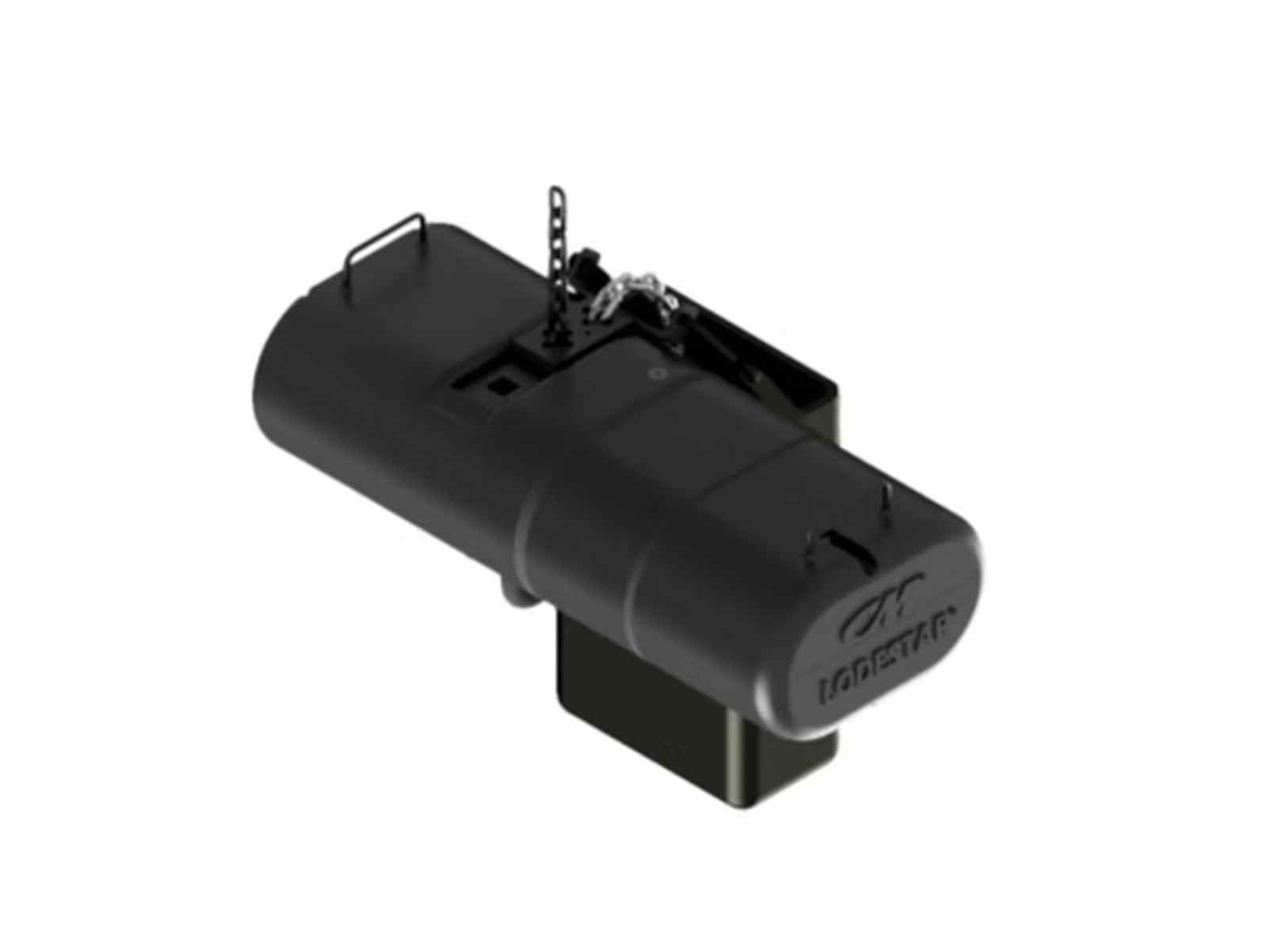

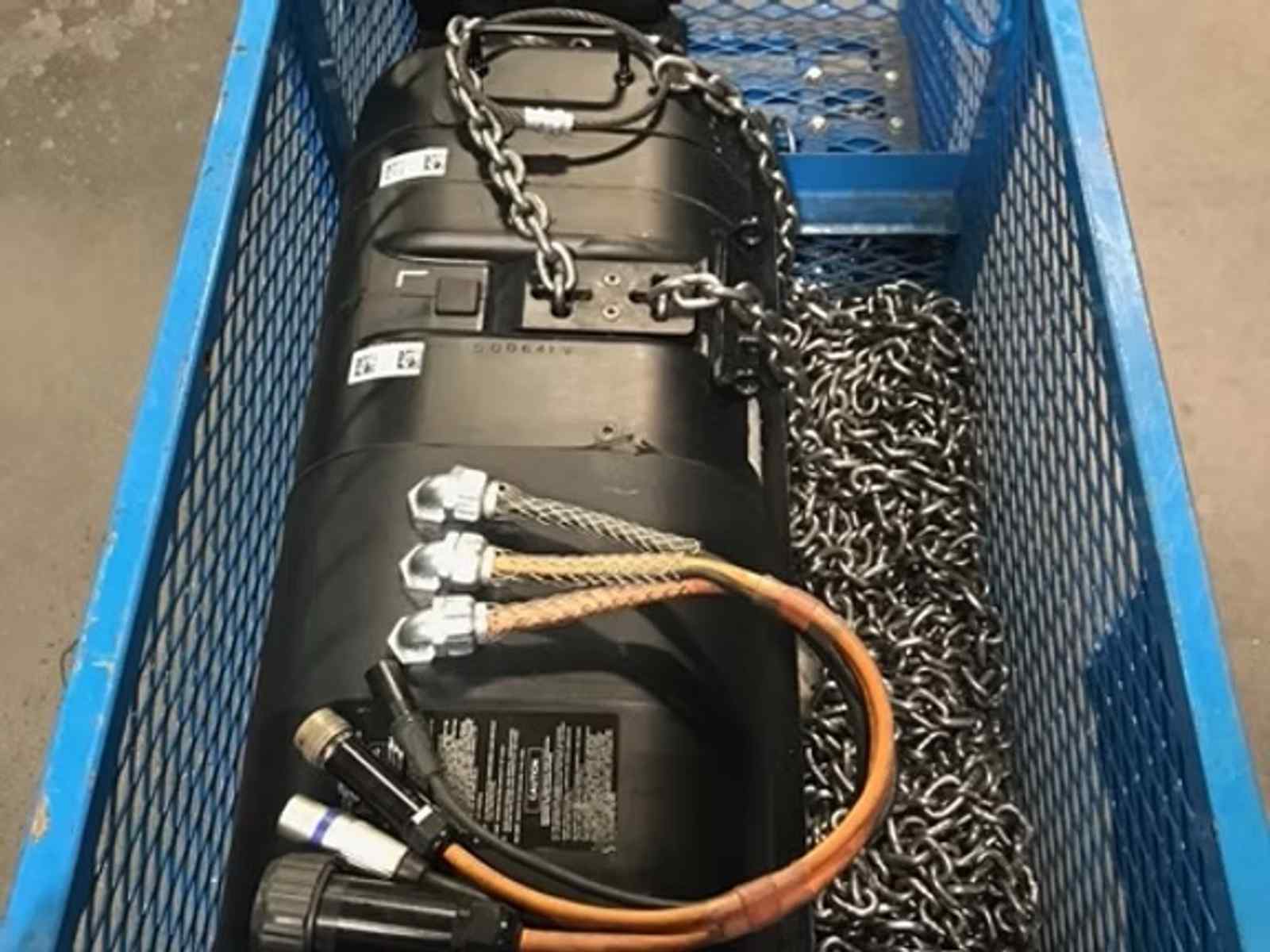

1/2 Ton Servo Chain Hoist



1/2 Ton Servo Chain Hoist
Product Info
- Variable Speed Chain Hoist
- 0-100 fpm
- 1/2 Ton Load Capacity
- Servo Position Control
- Overload Protection
- Dual Electro-Mechanical Brakes
- Travel Limits
- Motor Up or Down Orientation
- Unit Weight: 183 lbs
- Dedicated Travel Bin

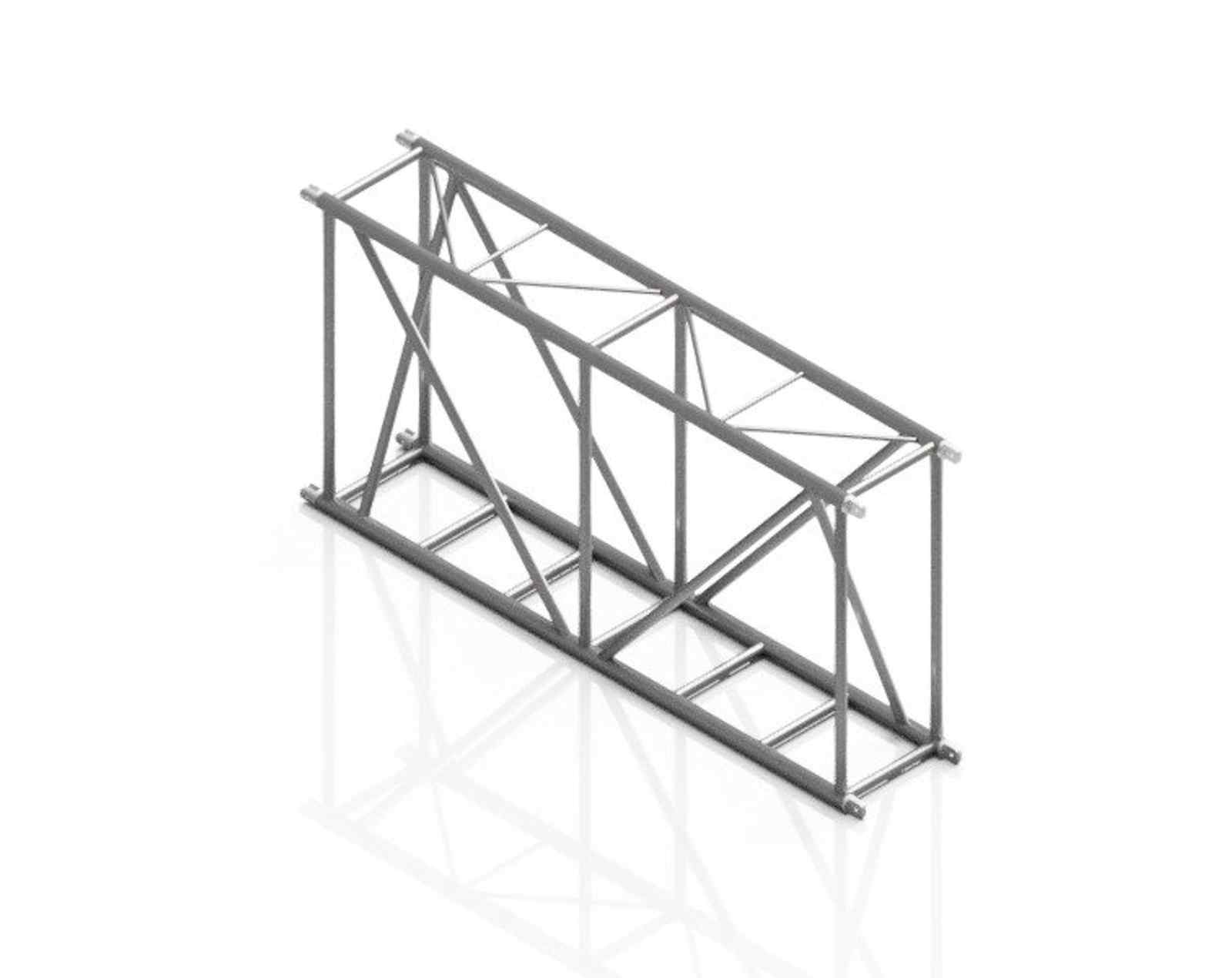

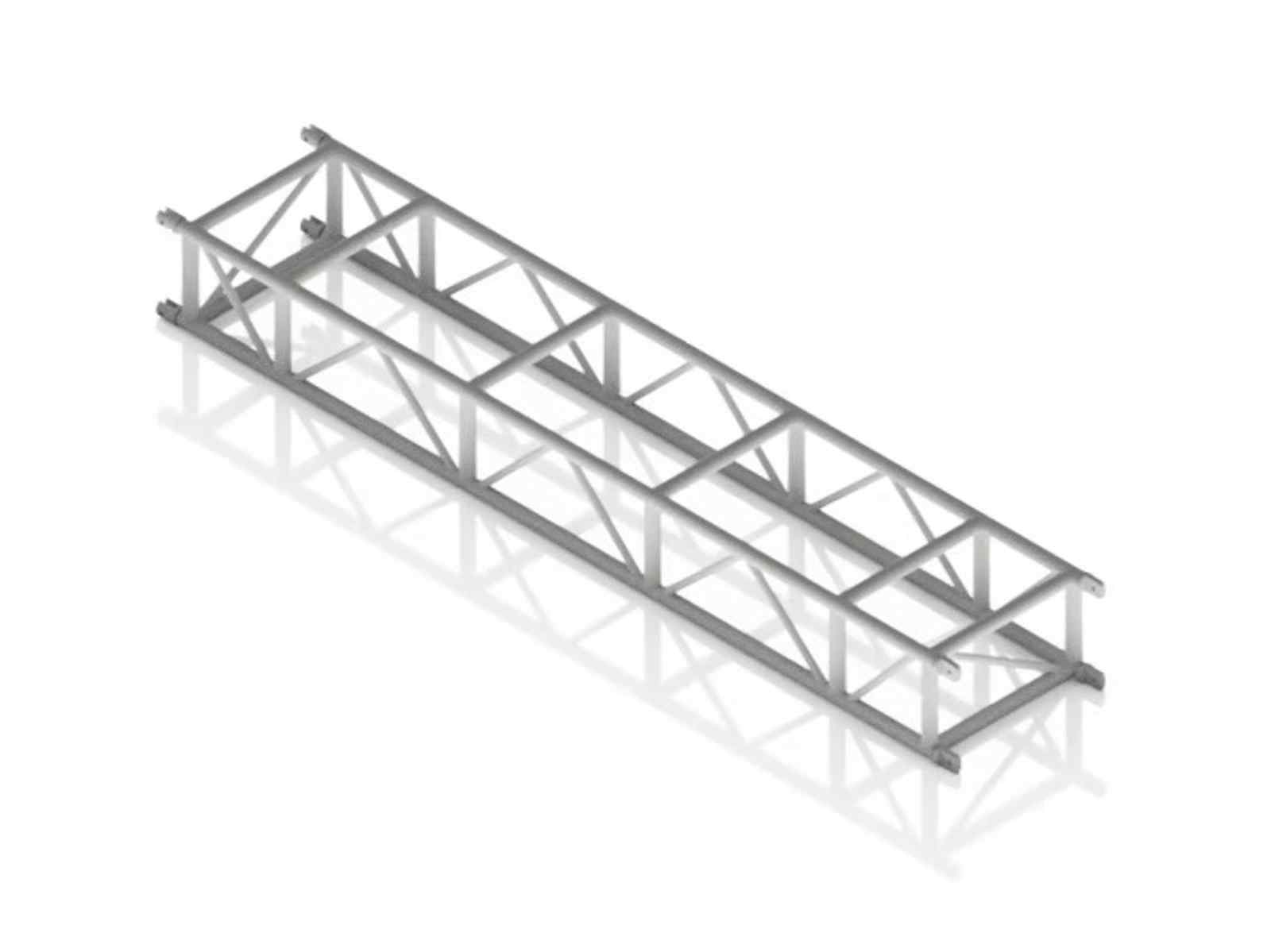

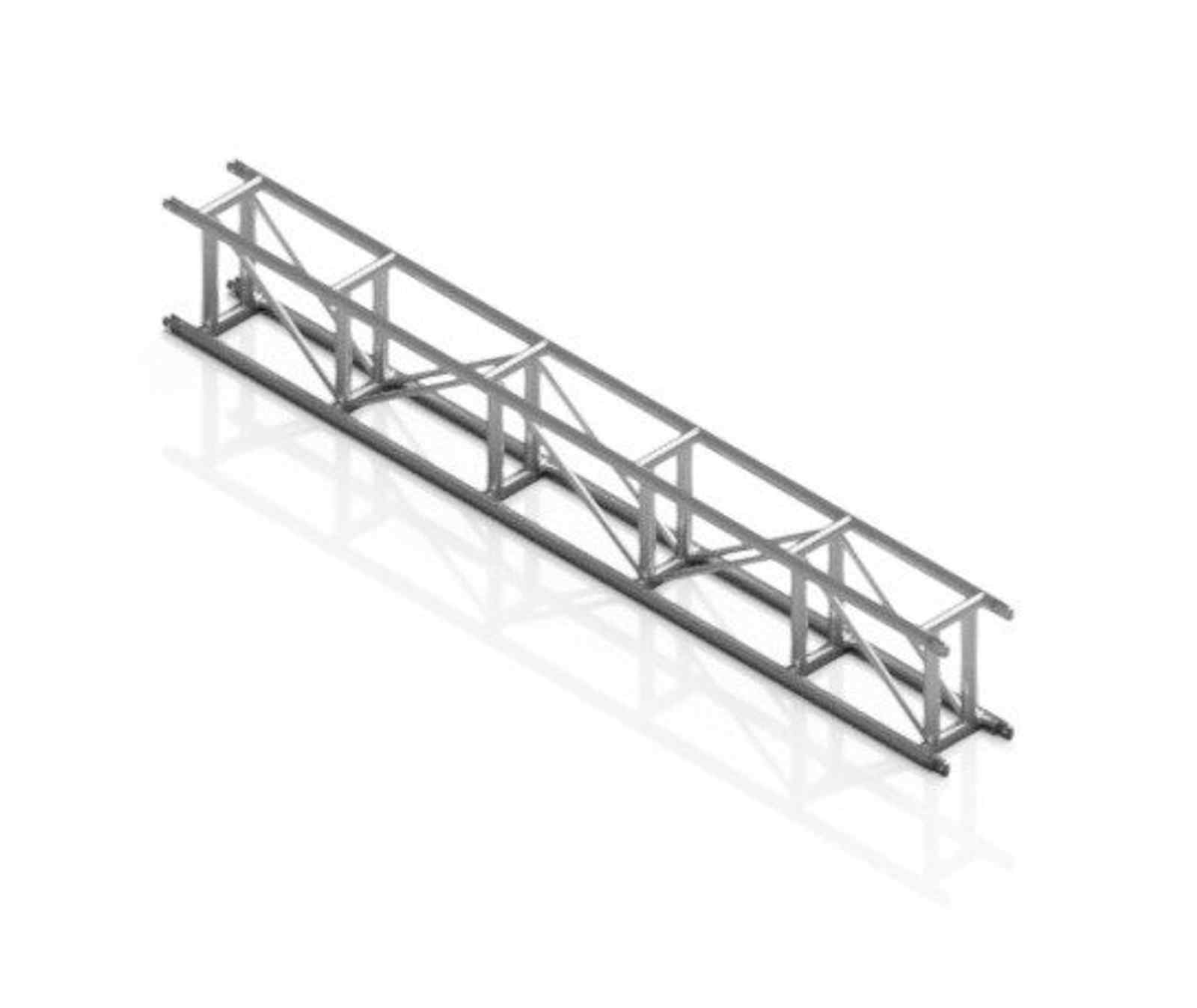

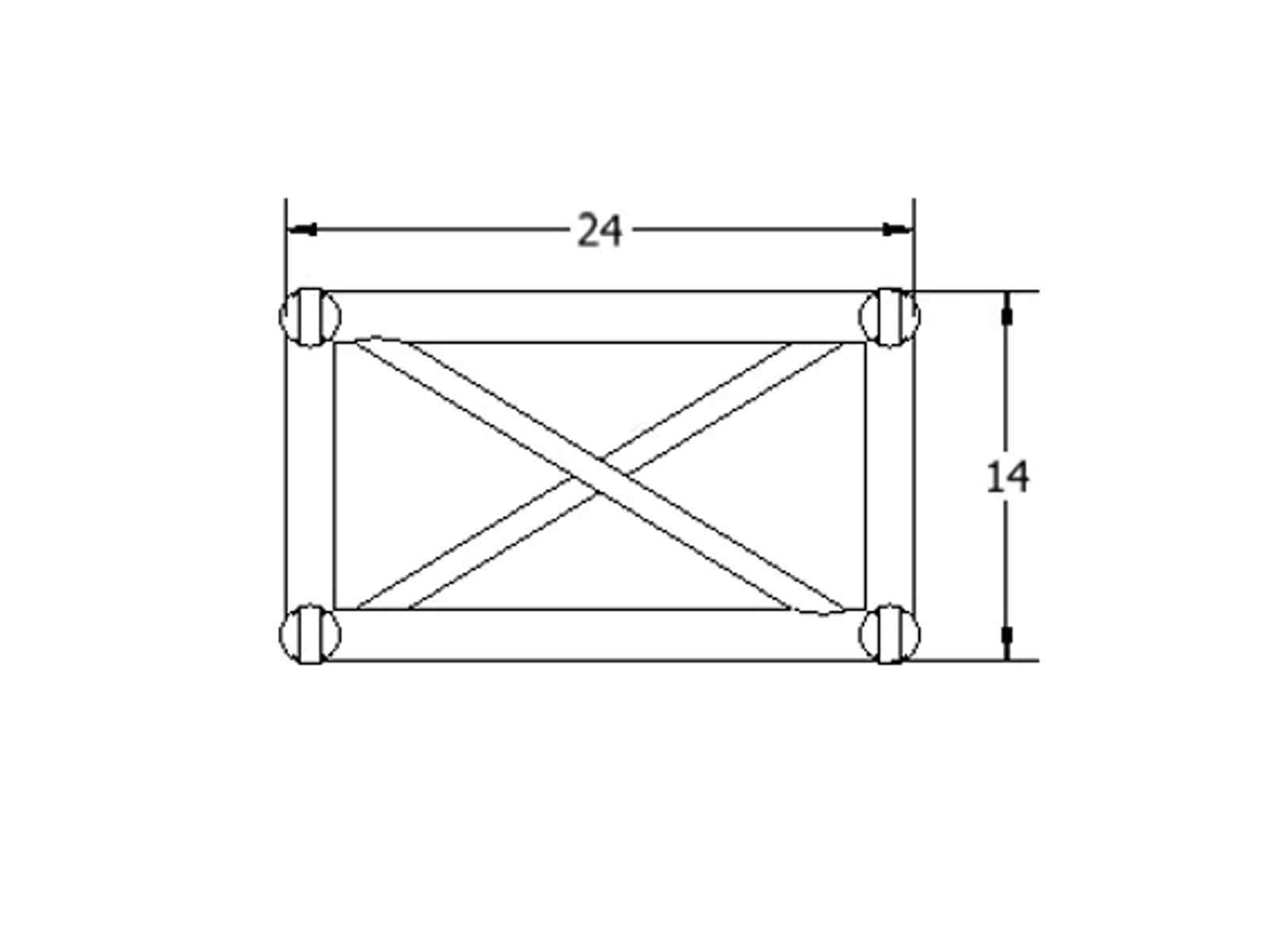

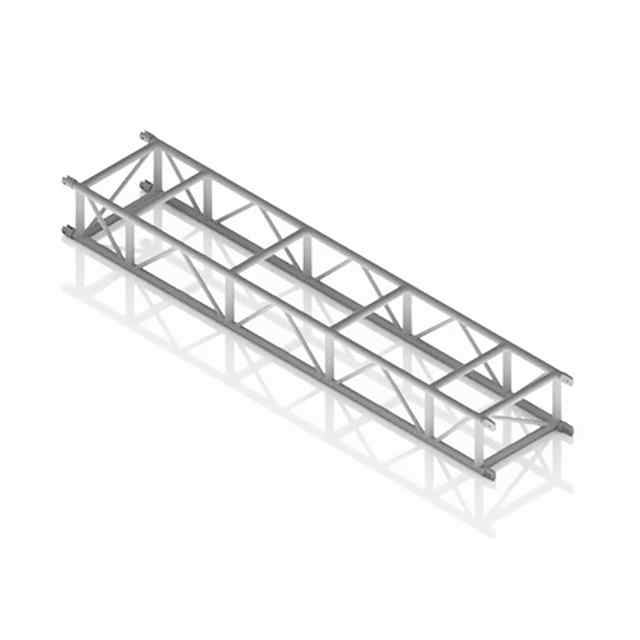

2ft Wide BH Truss



2ft Wide BH Truss
Product Info
- Dimensions: 14"H x 24"W
- Holds One Rows of Automated Lights
- Winches Can Mount Inside Truss
- Saves Need for Mother Grid
- Fits 4 Across, 2 High In Truck
- Standard Lengths:
- 8ft Section
- 10ft Section
- Custom Lengths Available Upon Request

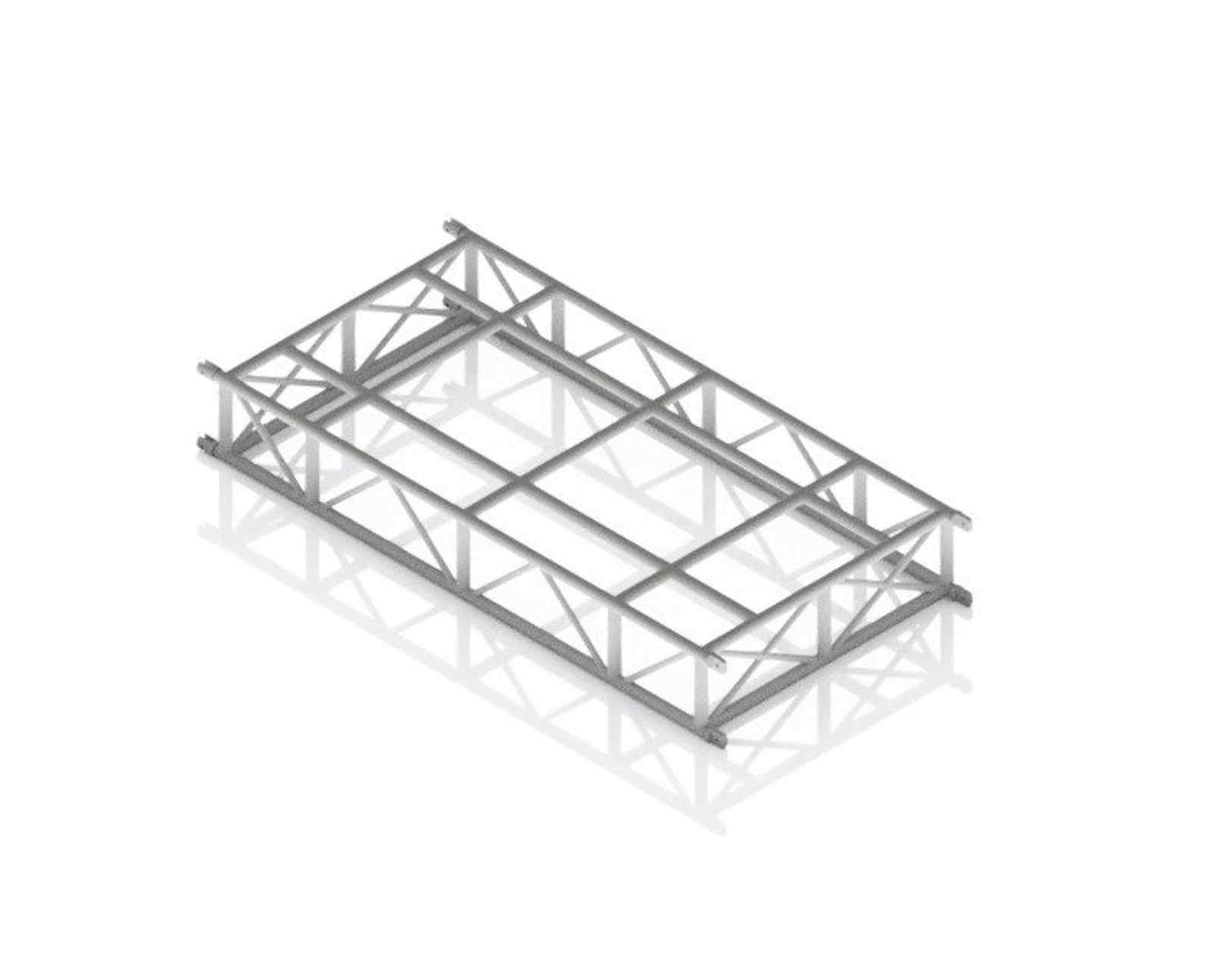

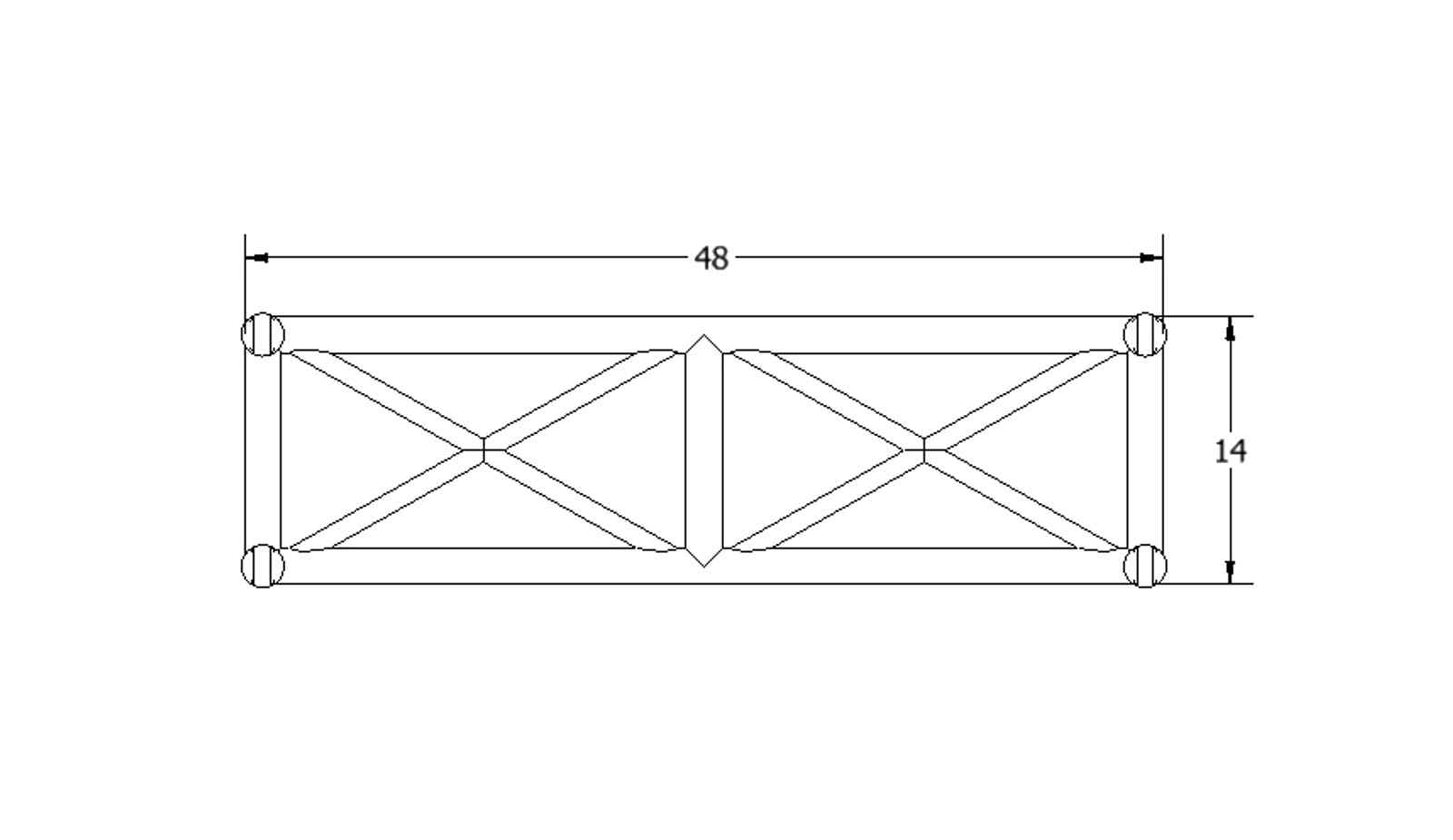

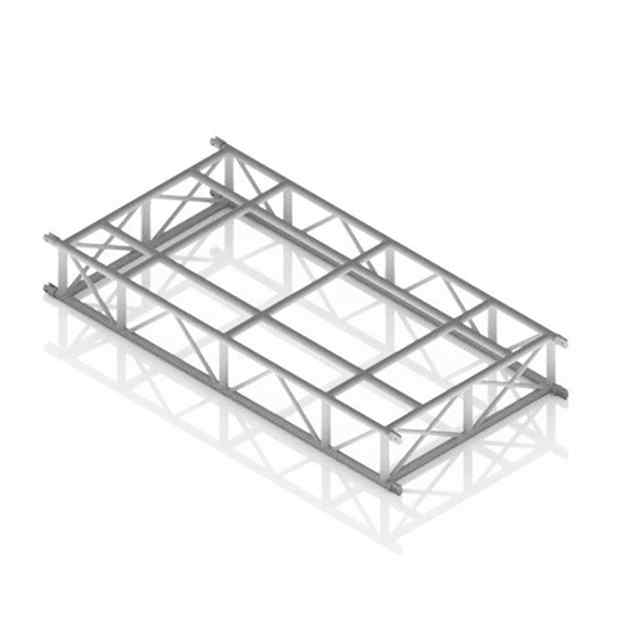

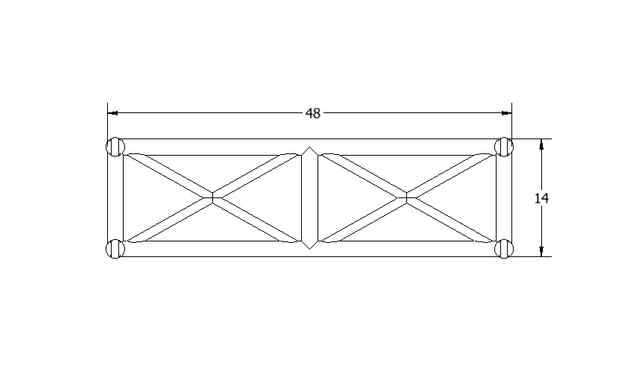

4ft Wide BH Truss



4ft Wide BH Truss
Product Info
- Dimensions: 14"H x 48"W
- Holds Two Rows of Automated Lights
- Winches Can Mount Inside Truss
- Saves Need for Mother Grid
- Fits 2 Across, 2 High In Truck
- Standard Lengths:
- 8ft Section
- 10ft Section
- Custom Lengths Available Upon Request

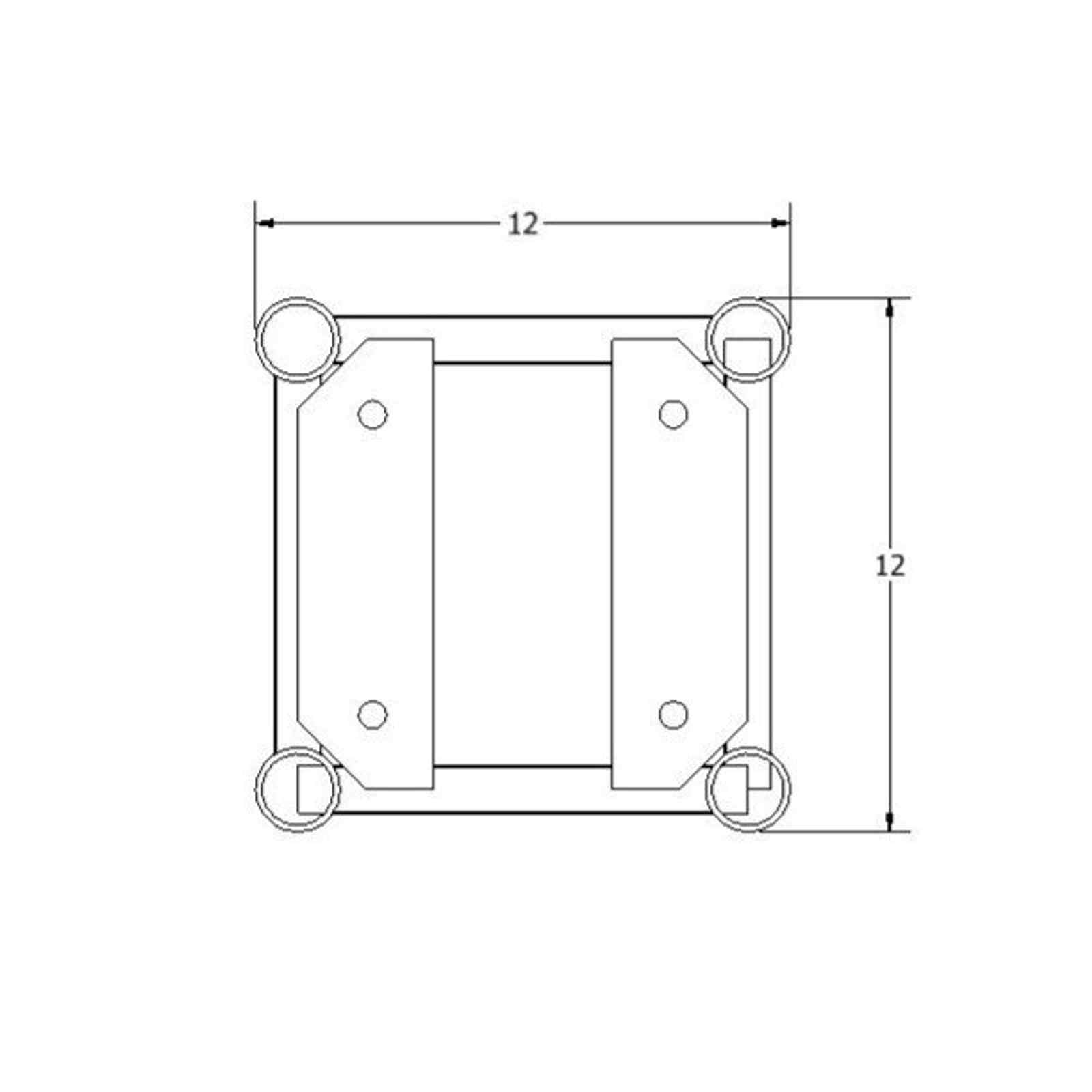

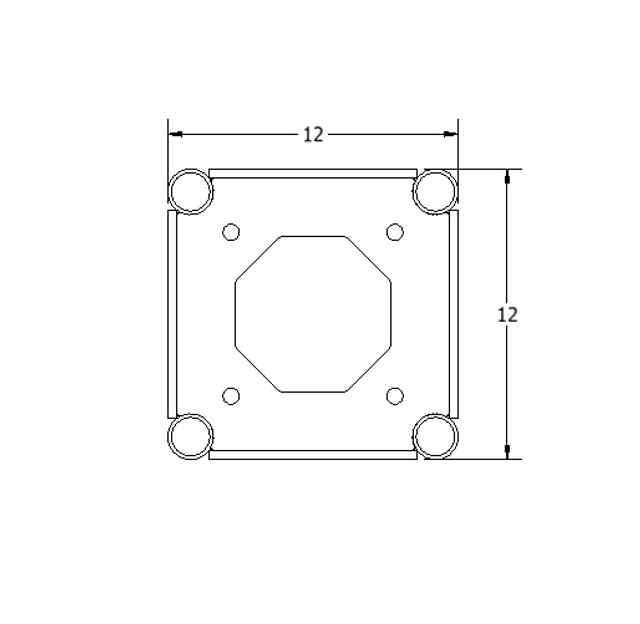

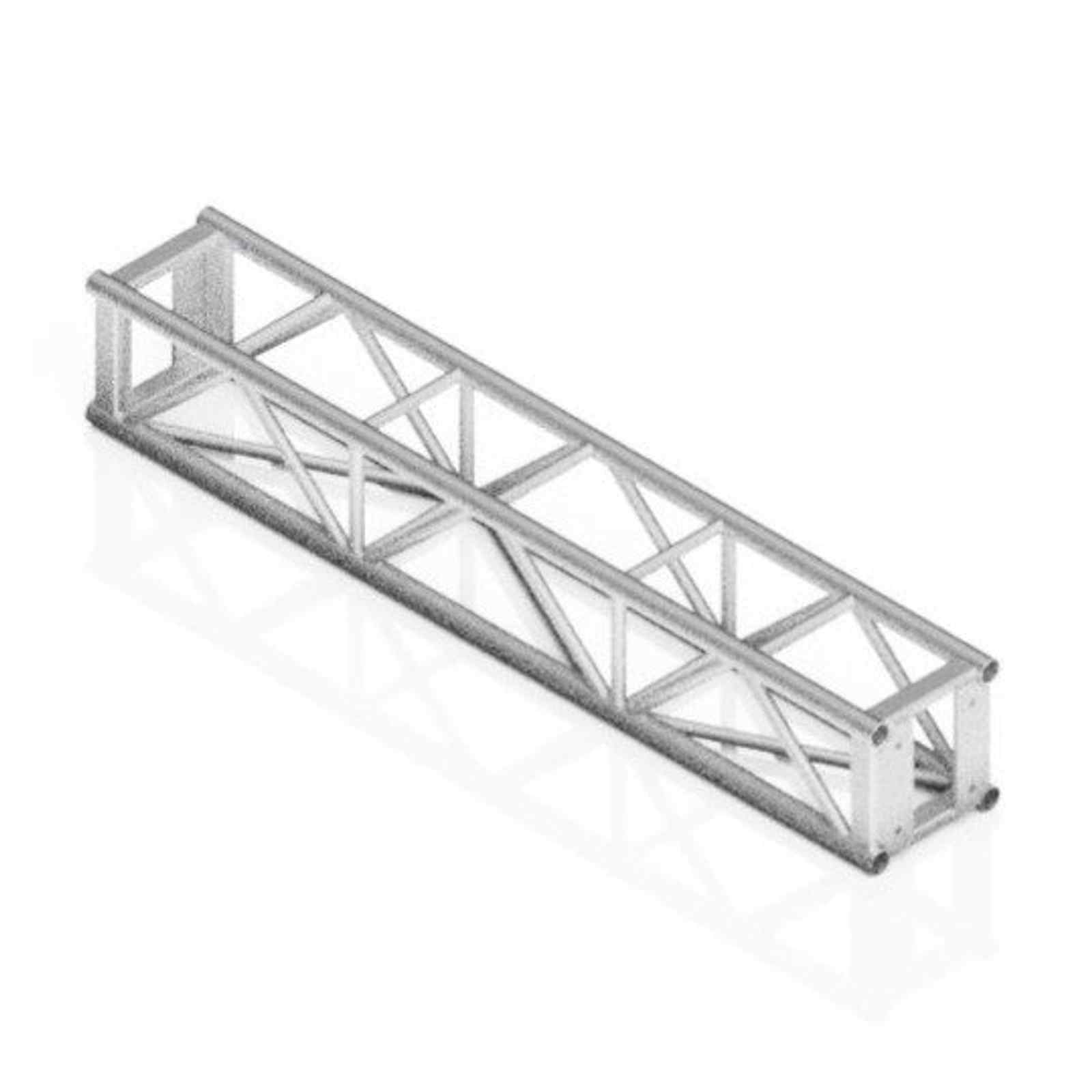

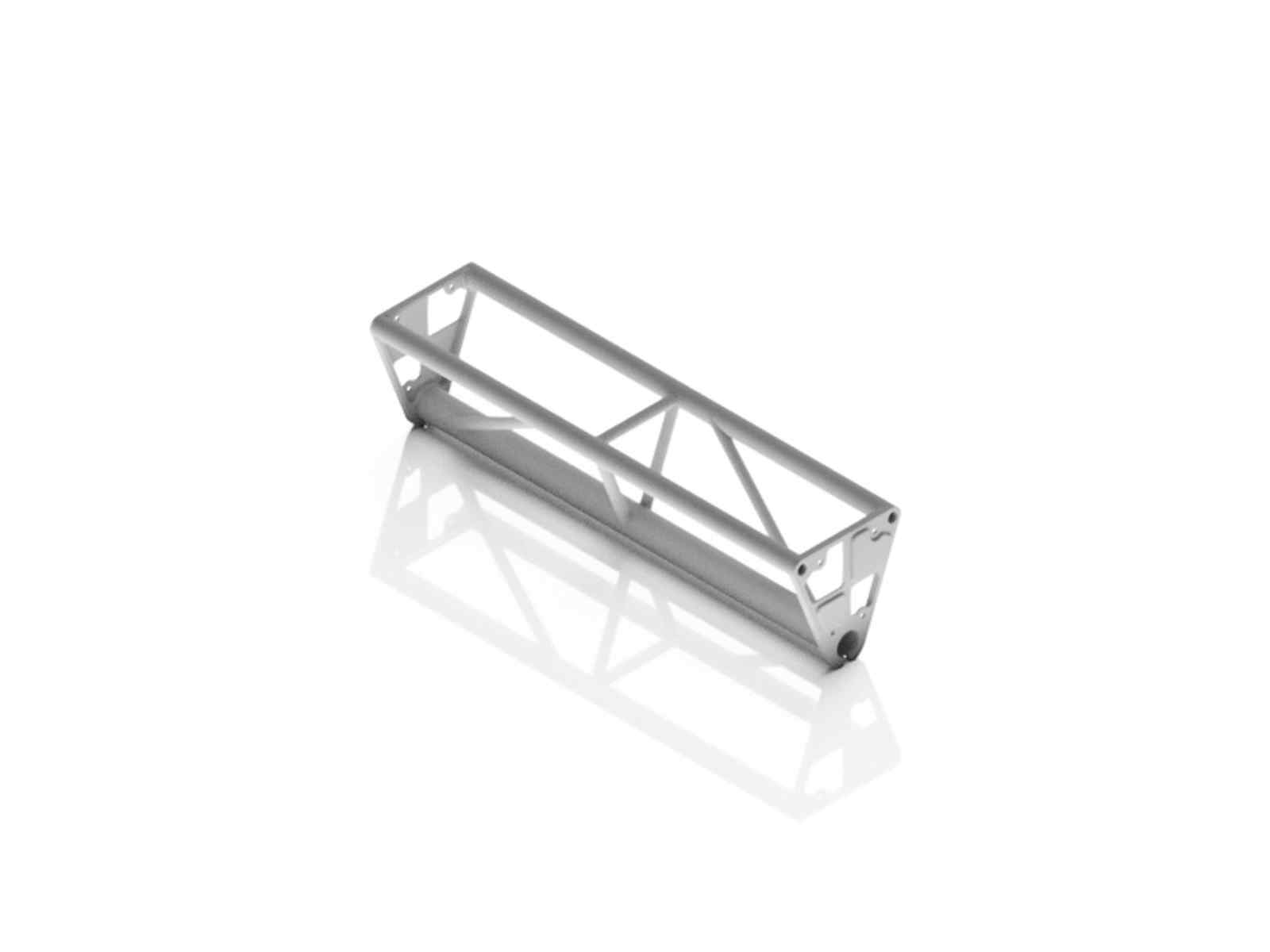

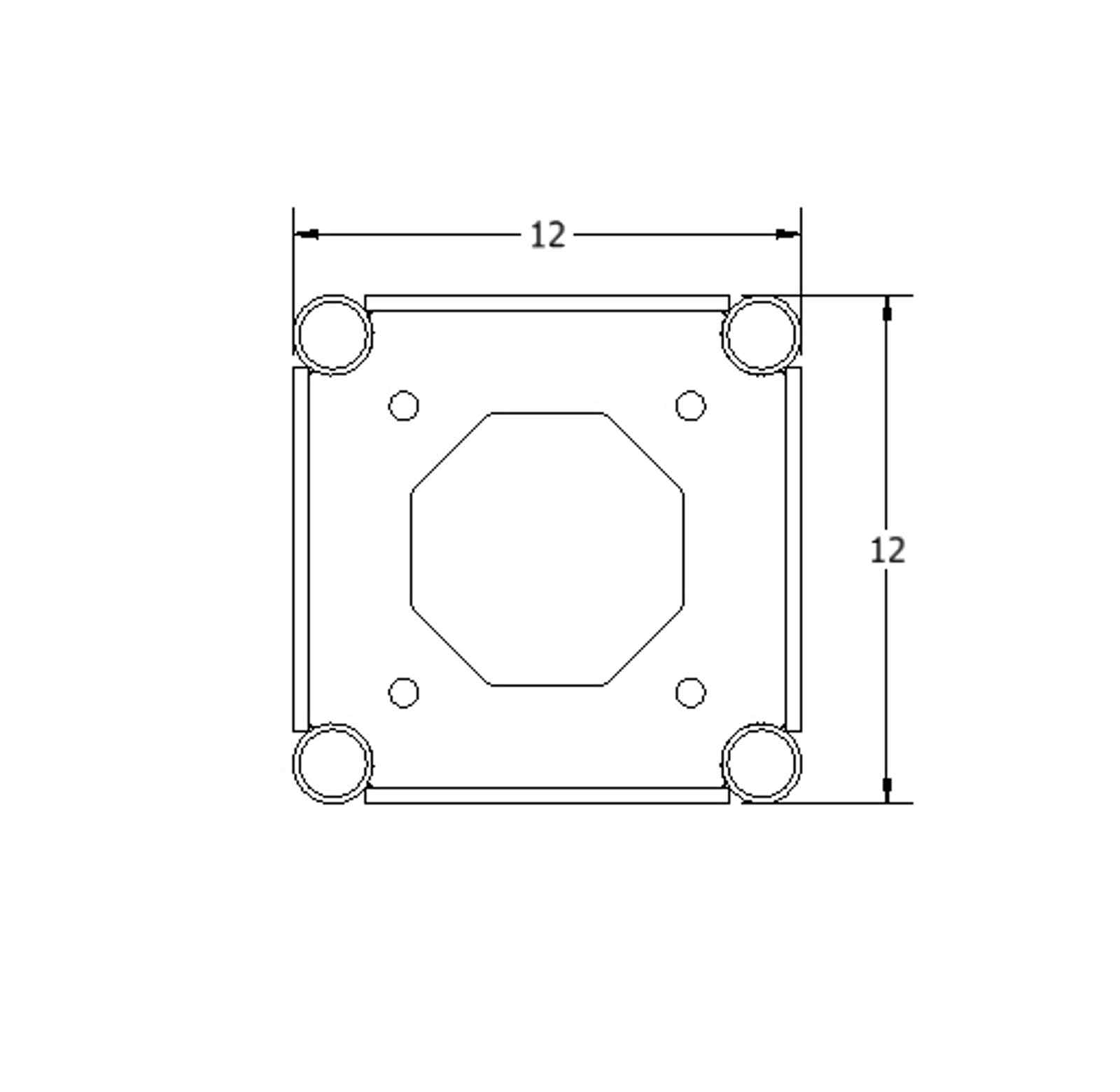

12in Box Truss




12in Box Truss
Product Info
- Outer Dimensions: 12" x 12"
- Main Chords: 1 1/2" Sch. 40 Aluminum Pipe
- Bracing: 3/4" Sch. 40 Aluminum Pipe
- Includes 5/8" Grade 8 Hardware
- Available in Silver and Black Powder Coat
- Available in the Following Lengths:
- 2in
- 6in
- 9in
- 1ft
- 2ft
- 3ft
- 4ft
- 5ft
- 6ft
- 8ft
- 10ft
- 20ft
- Custom Lengths Available Upon Request

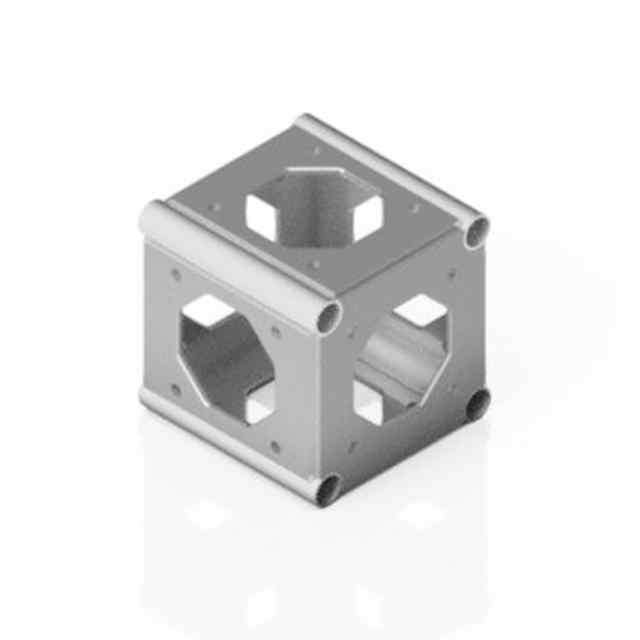

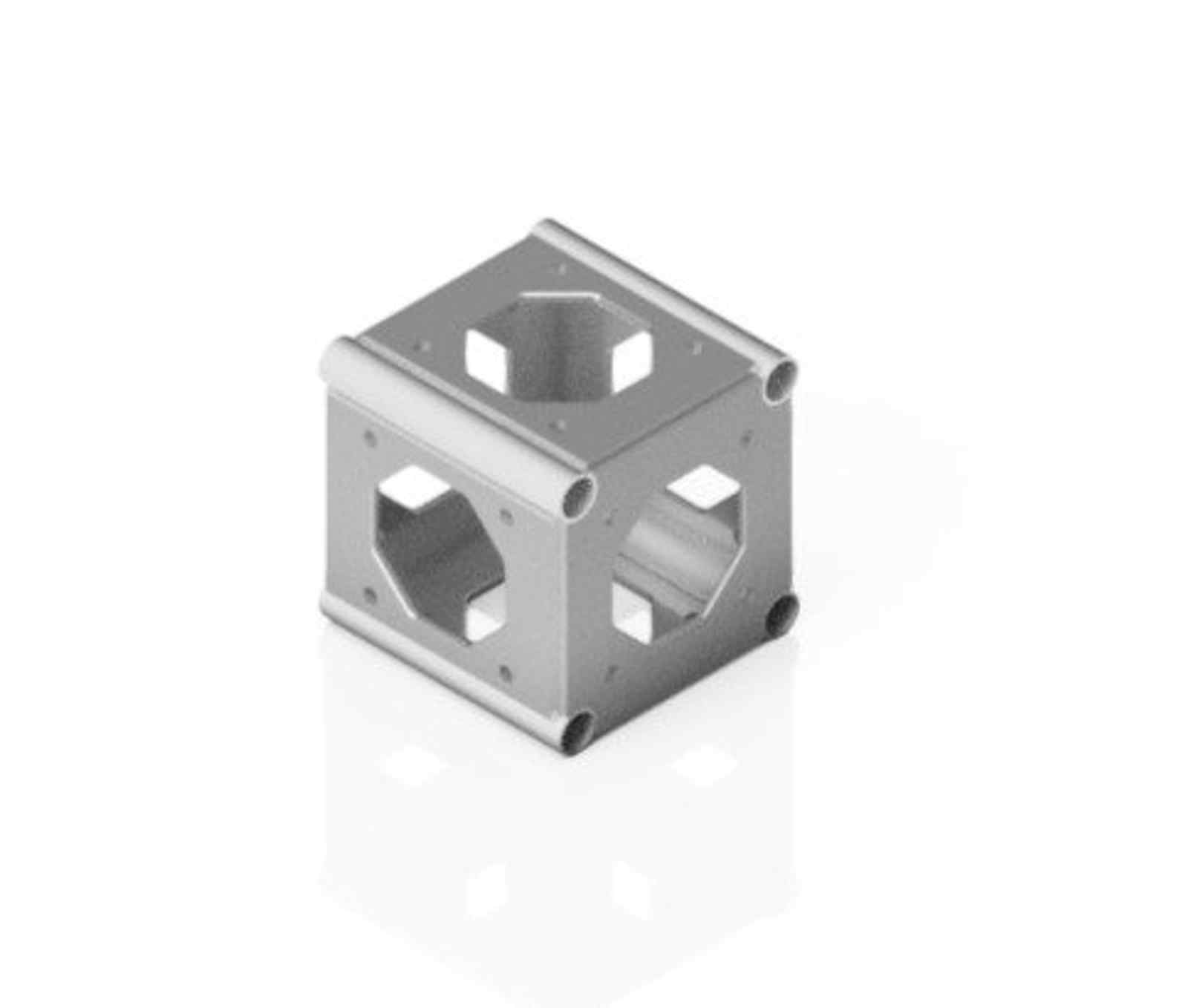

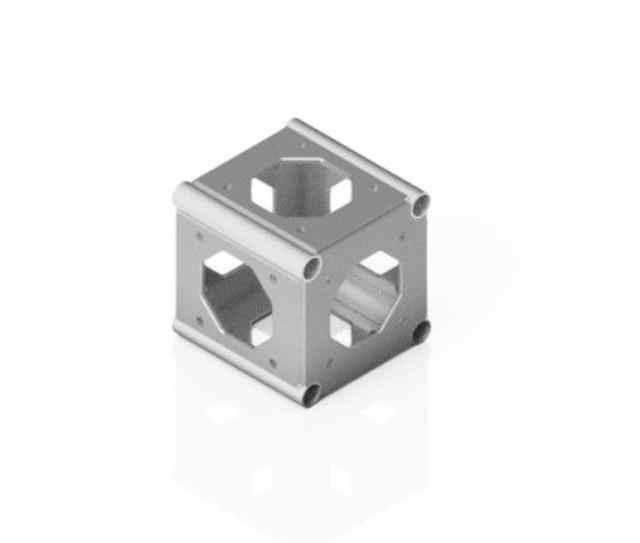

12in Corner Block



12in Corner Block
Product Info
- Dimensions: 12" x 12" x 12"
- Main Chords: 1 1/2" Sch. 40 Aluminum Pipe
- Includes 5/8" Grade 8 Hardware
- Available in Silver and Black Powder Coat

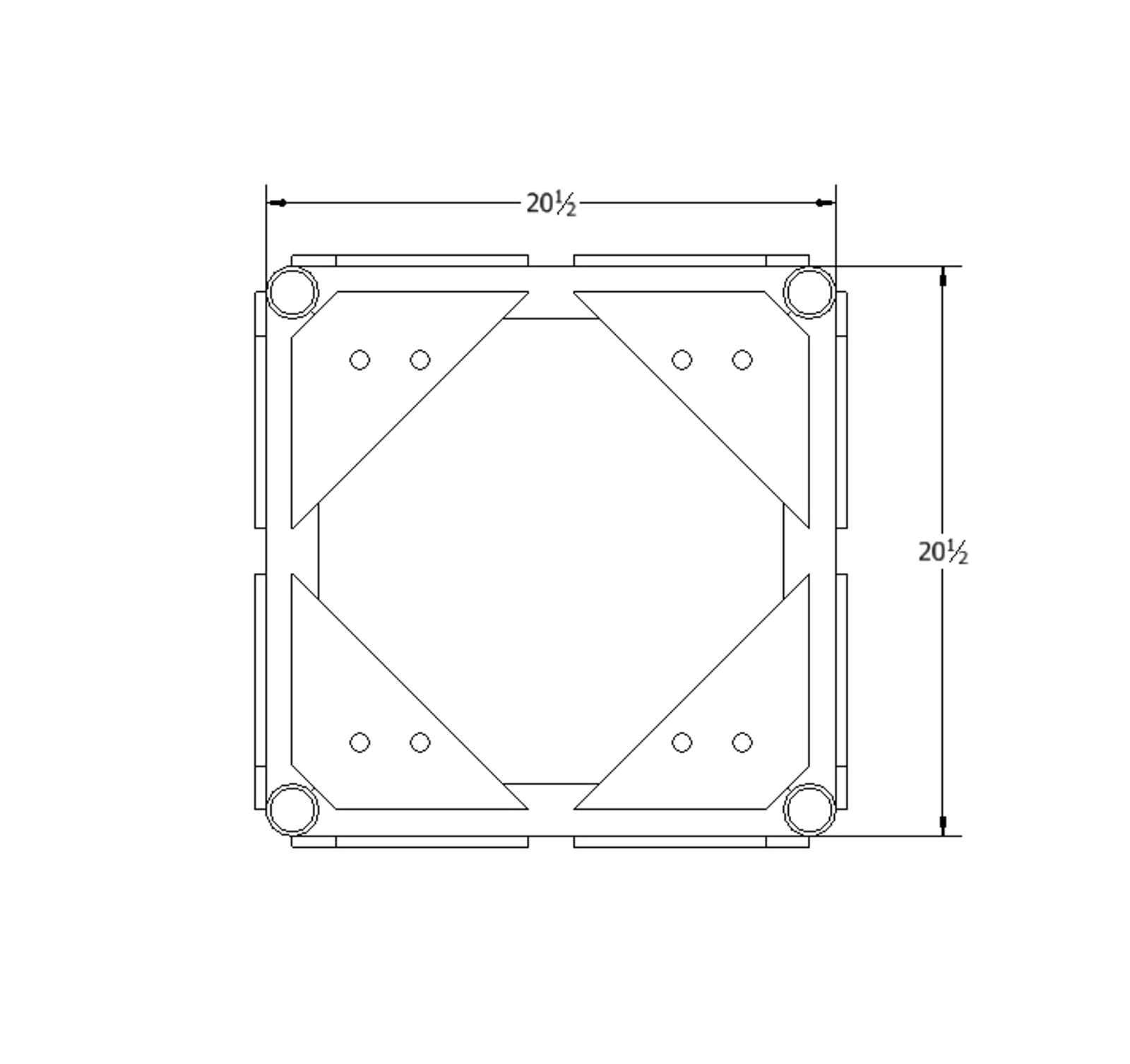

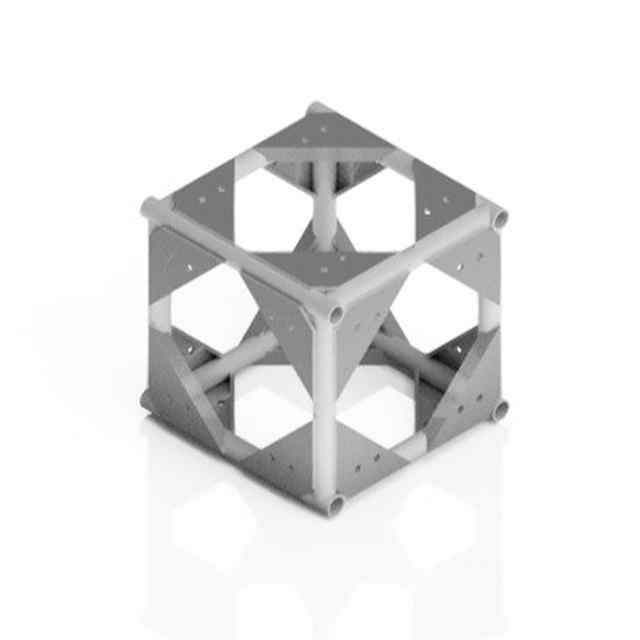

20.5in Corner Block



20.5in Corner Block
Product Info
- Dimensions: 20.5" x 20.5" x 21.25"
- Main Chords: 1 1/2" Sch. 40 Aluminum Pipe
- Includes 5/8" Grade 8 Hardware
- Available in Silver and Black Powder Coat

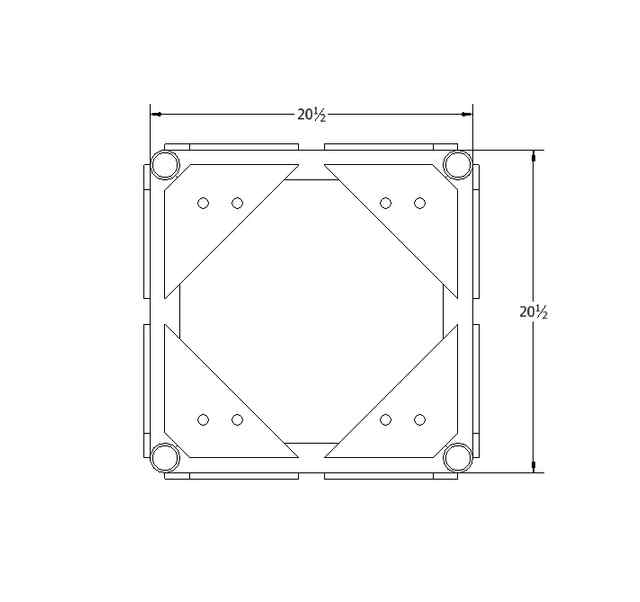

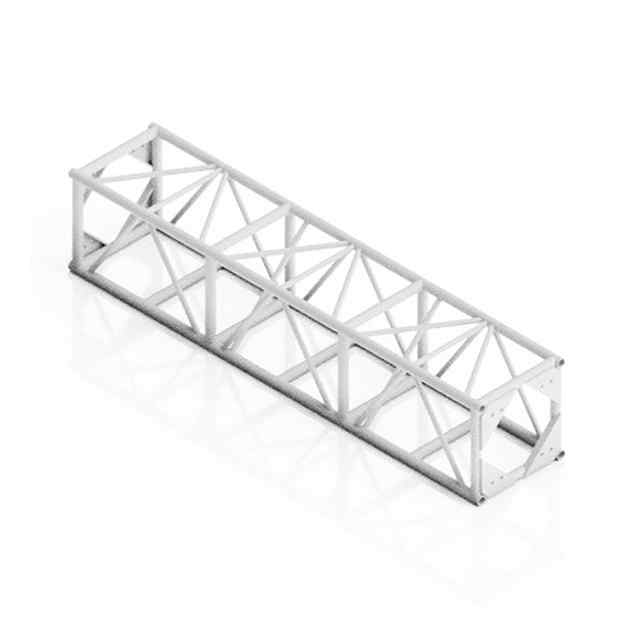

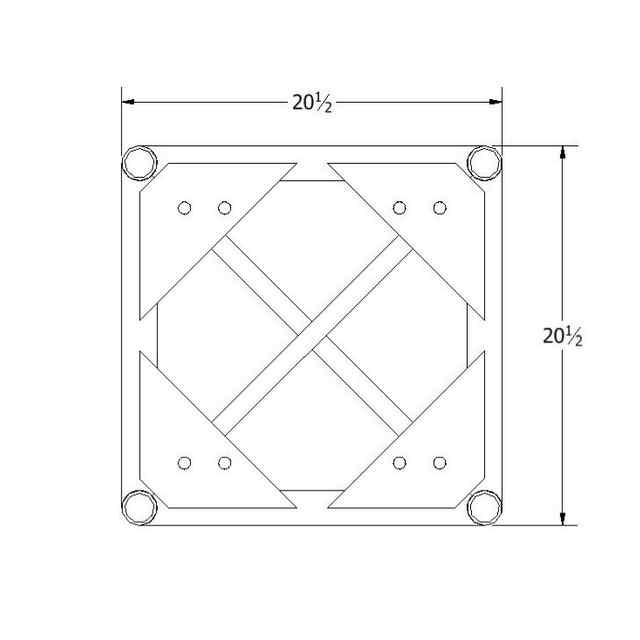

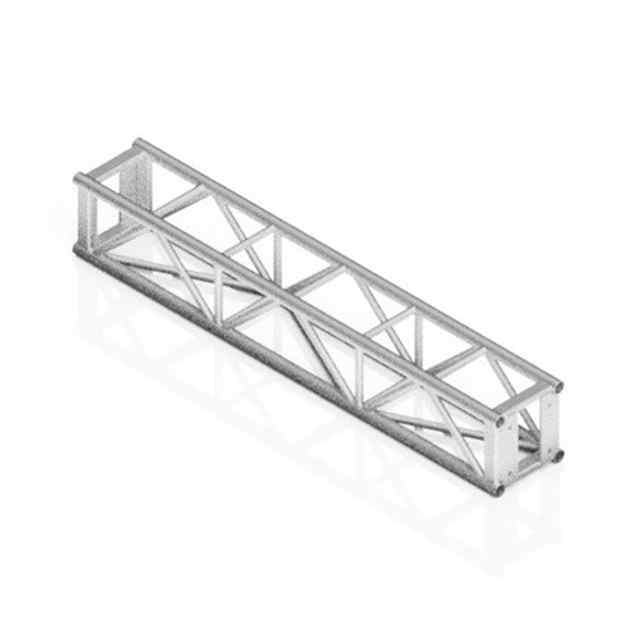

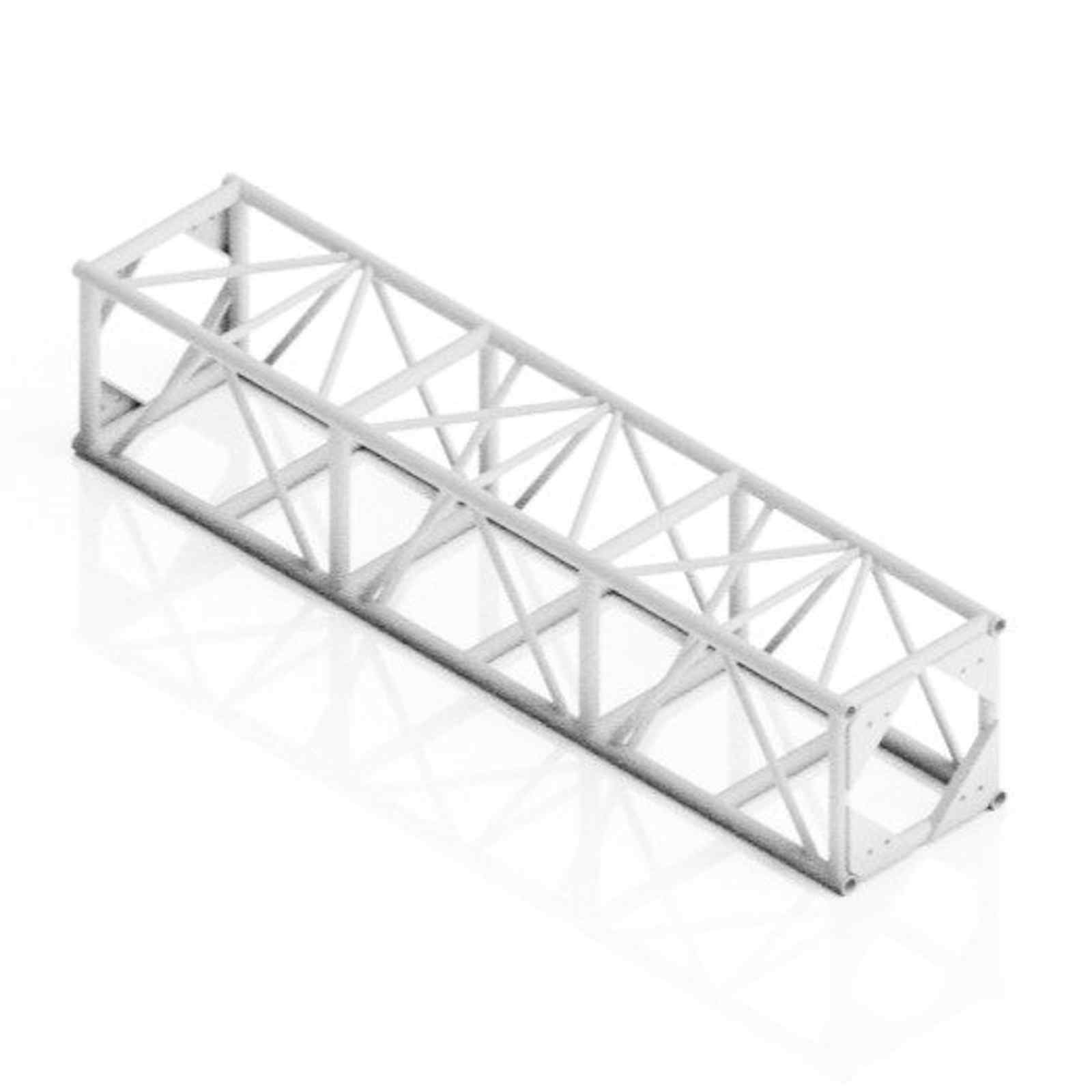

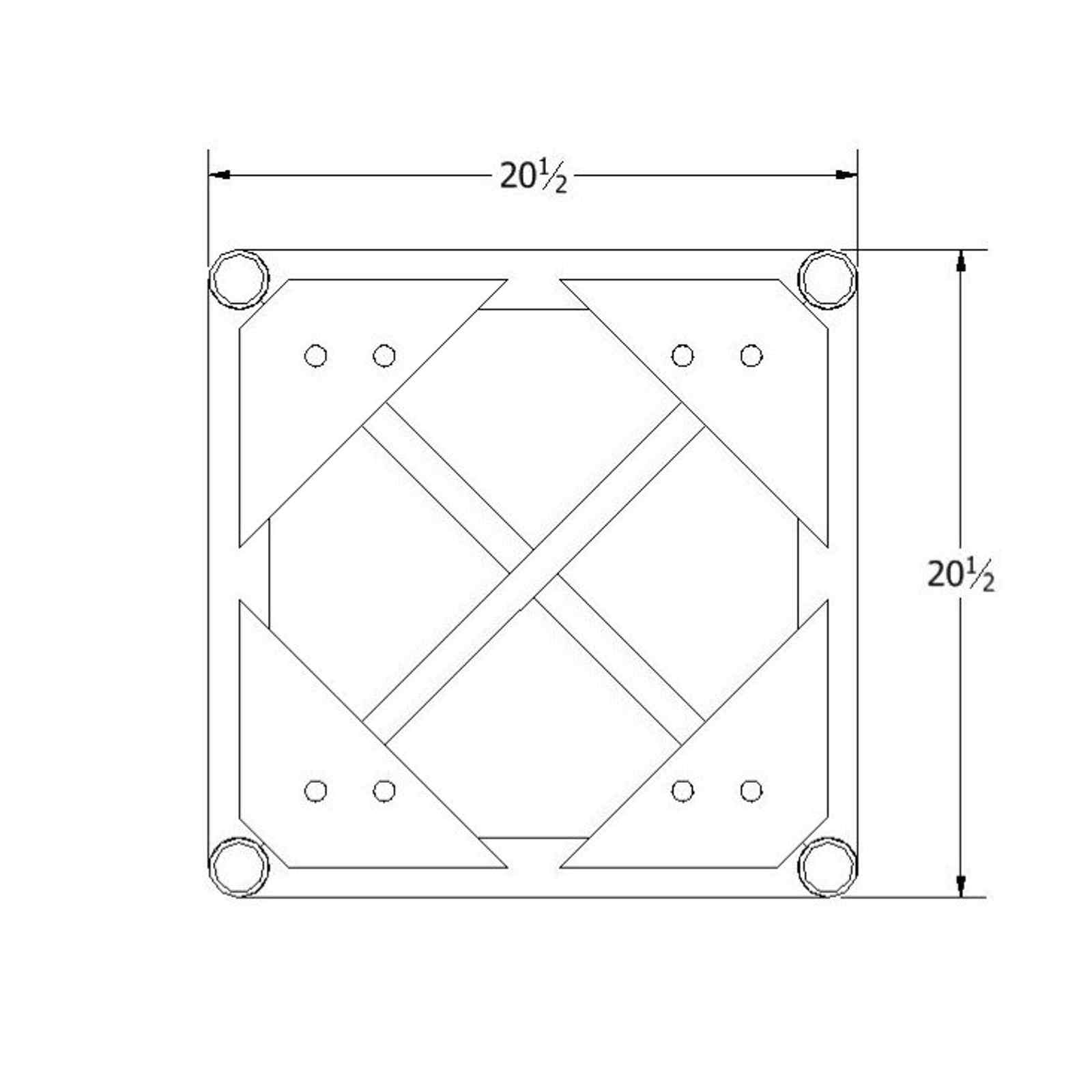

20.5in Box Truss




20.5in Box Truss
PRODUCT INFO
- Outer Dimensions: 20.5" x 20.5"
- Main Chords: 1 1/2" Aluminum Sch. 40 Pipe
- Diagonals: 3/4" Aluminum Sch. 40 Pipe
- Includes 5/8" Grade 8 Hardware
- Available in Silver and Black Powdercoat
- Available in the Following Lengths:
- 2in
- 6in
- 12in
- 21in
- 2ft
- 3ft
- 4ft
- 5ft
- 6ft
- 8ft
- 10ft
- Custom Lengths Available Upon Request
*Available in White or Steel.

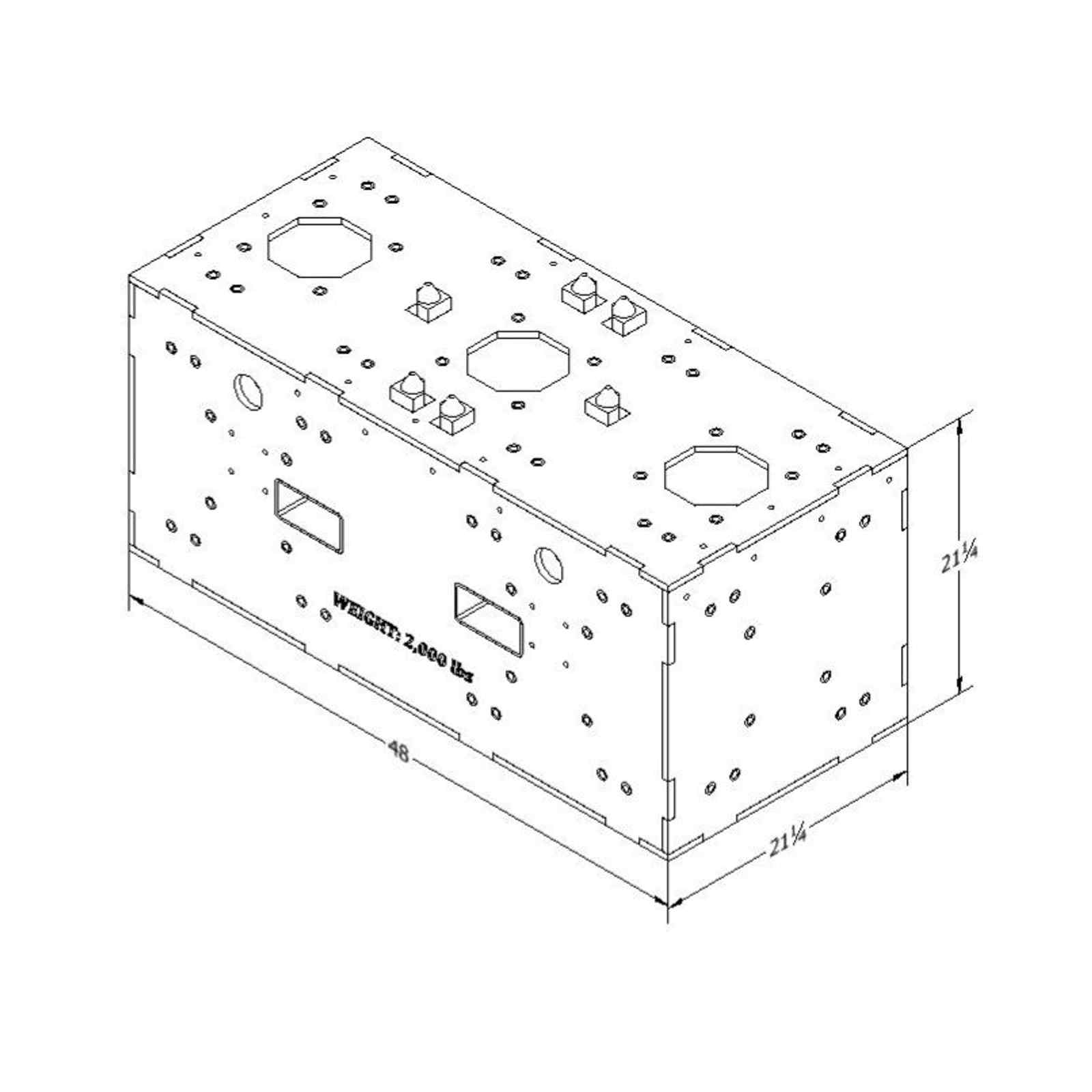

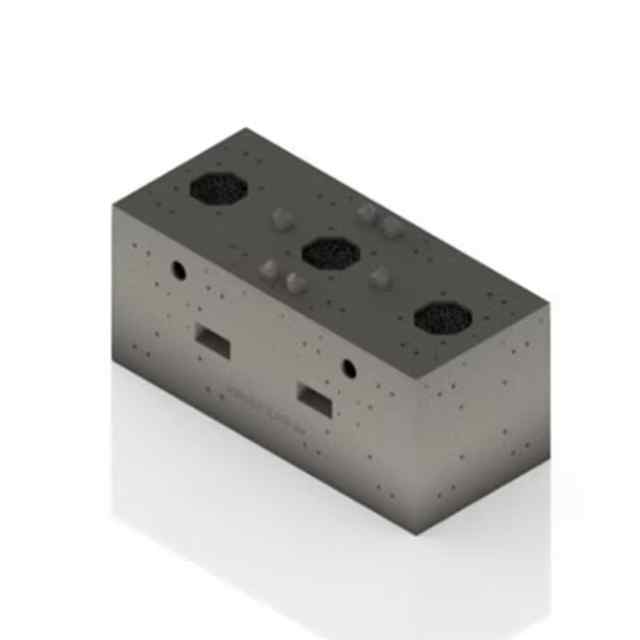

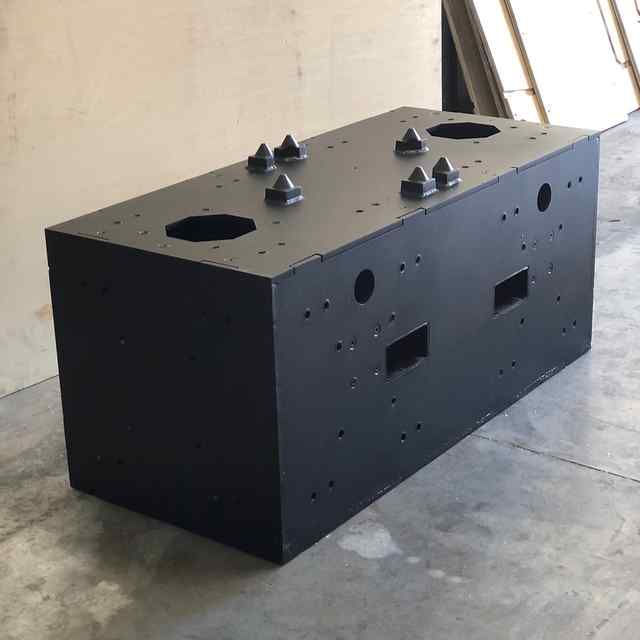

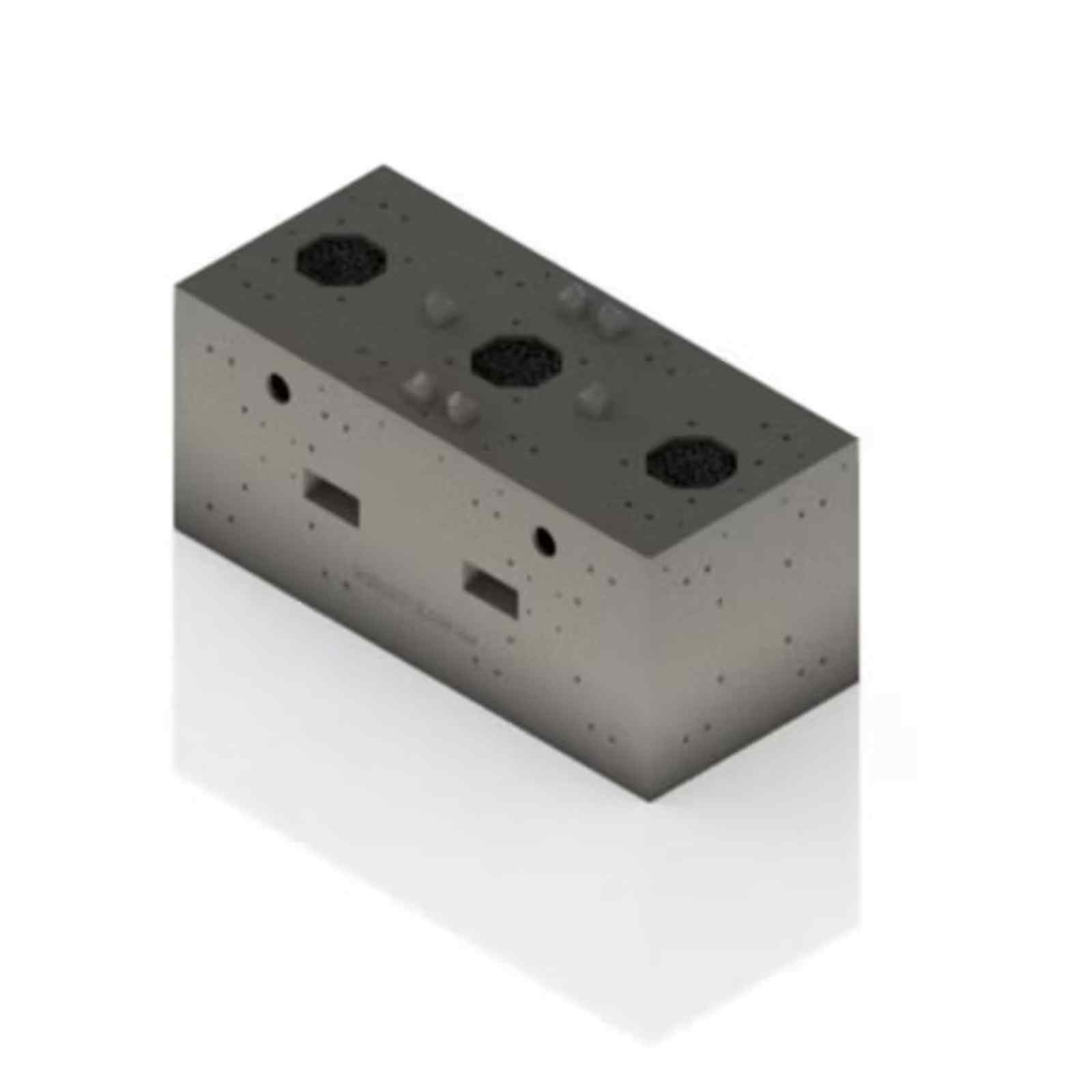

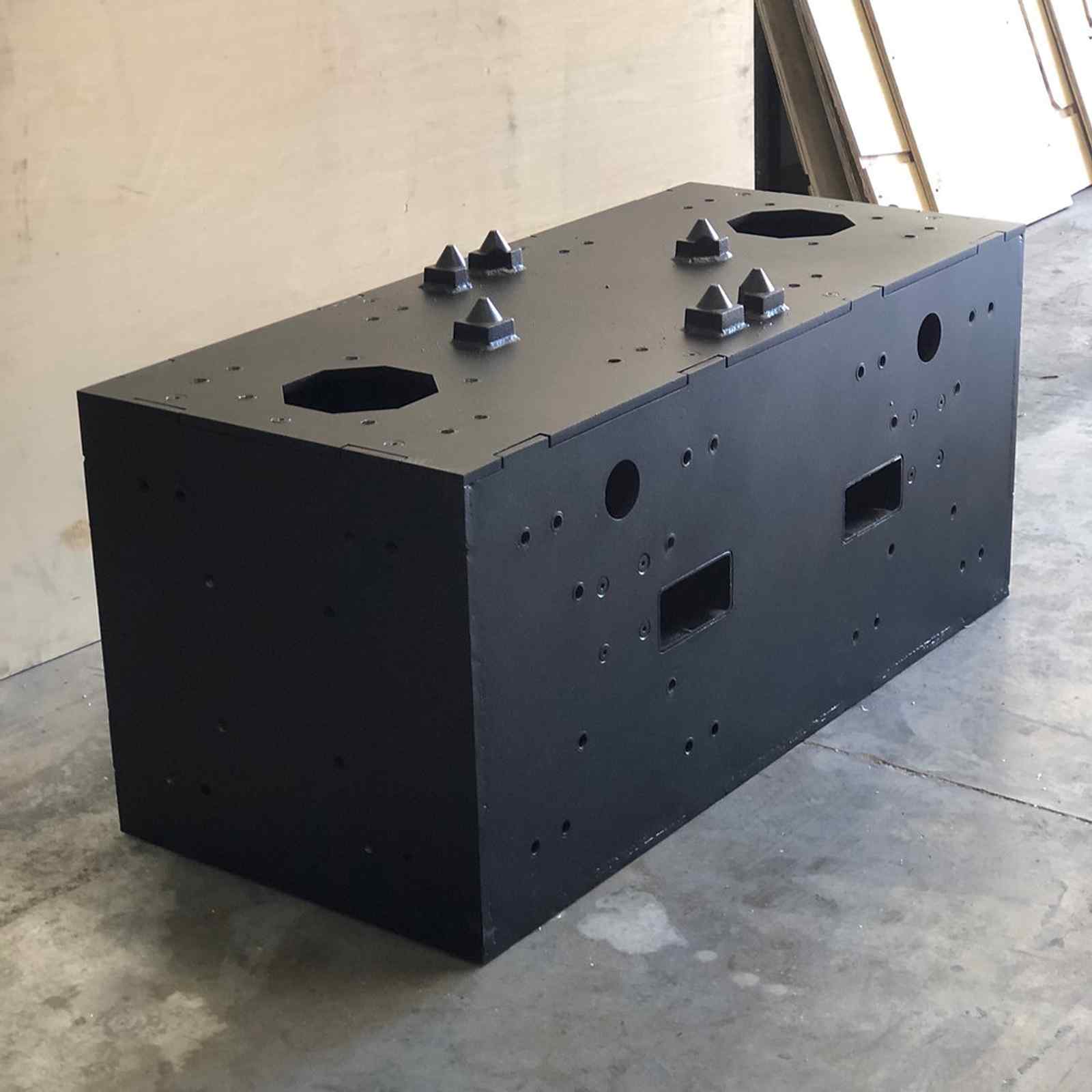

Counterweight Truss Block




Counterweight Truss Block
Product Info
- Dimensions: 21.5" x 21.5" x 48"
- Weight: 2,000 lbs
- Screw Jack Leveling Capability
- Locators for Easy Stacking
- Forklift Accessible
- For Use With 12" and 20.5" Box Truss

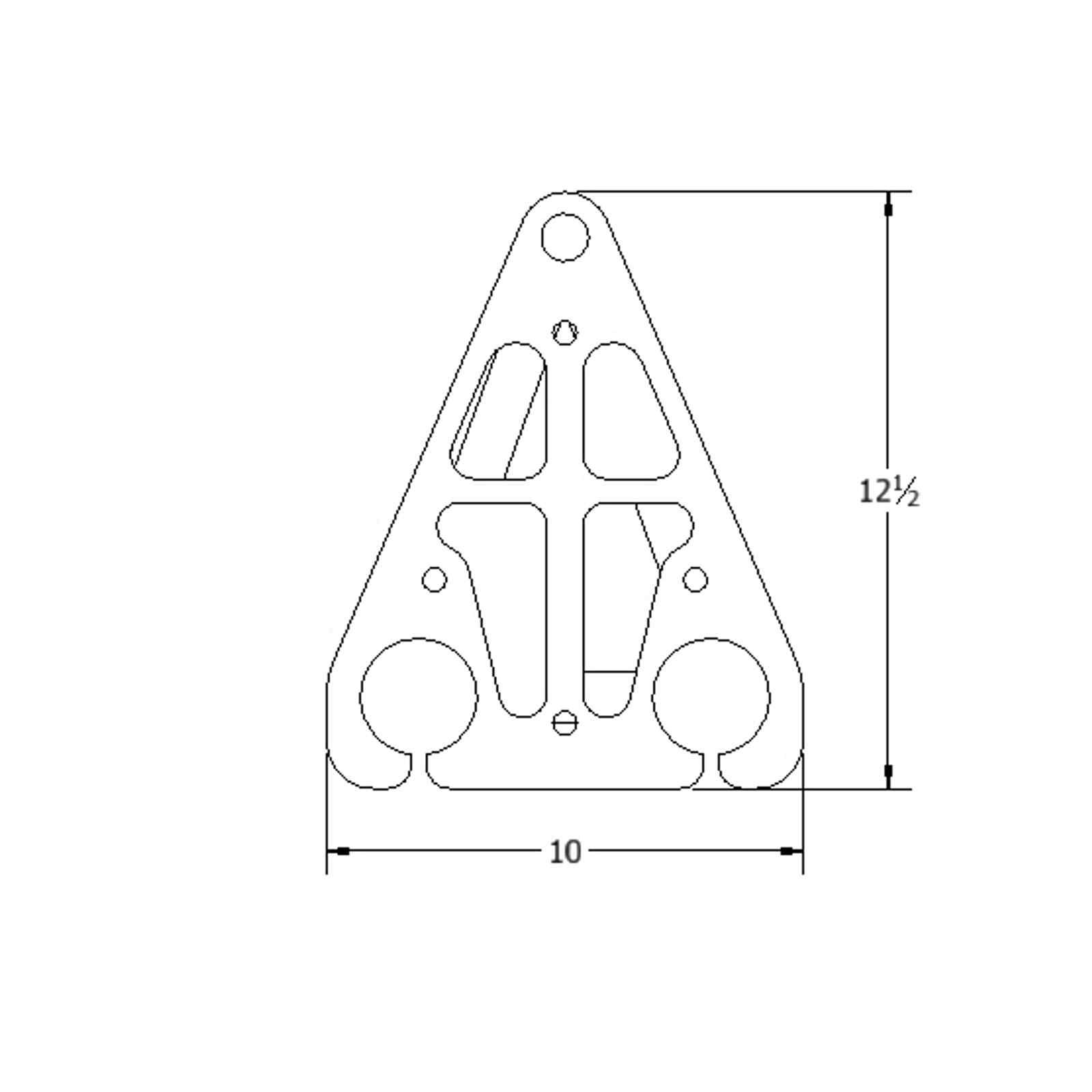

KB Effects Track Truss




KB Effects Track Truss
Product Info
- Mimics Shape of I-Beam For Use With Trolleys
- Curtain and LED Video Wall Tracking
- Standard Lengths:
- 5ft
- 10ft
- Also Available In Radius Sections and Custom Lengths

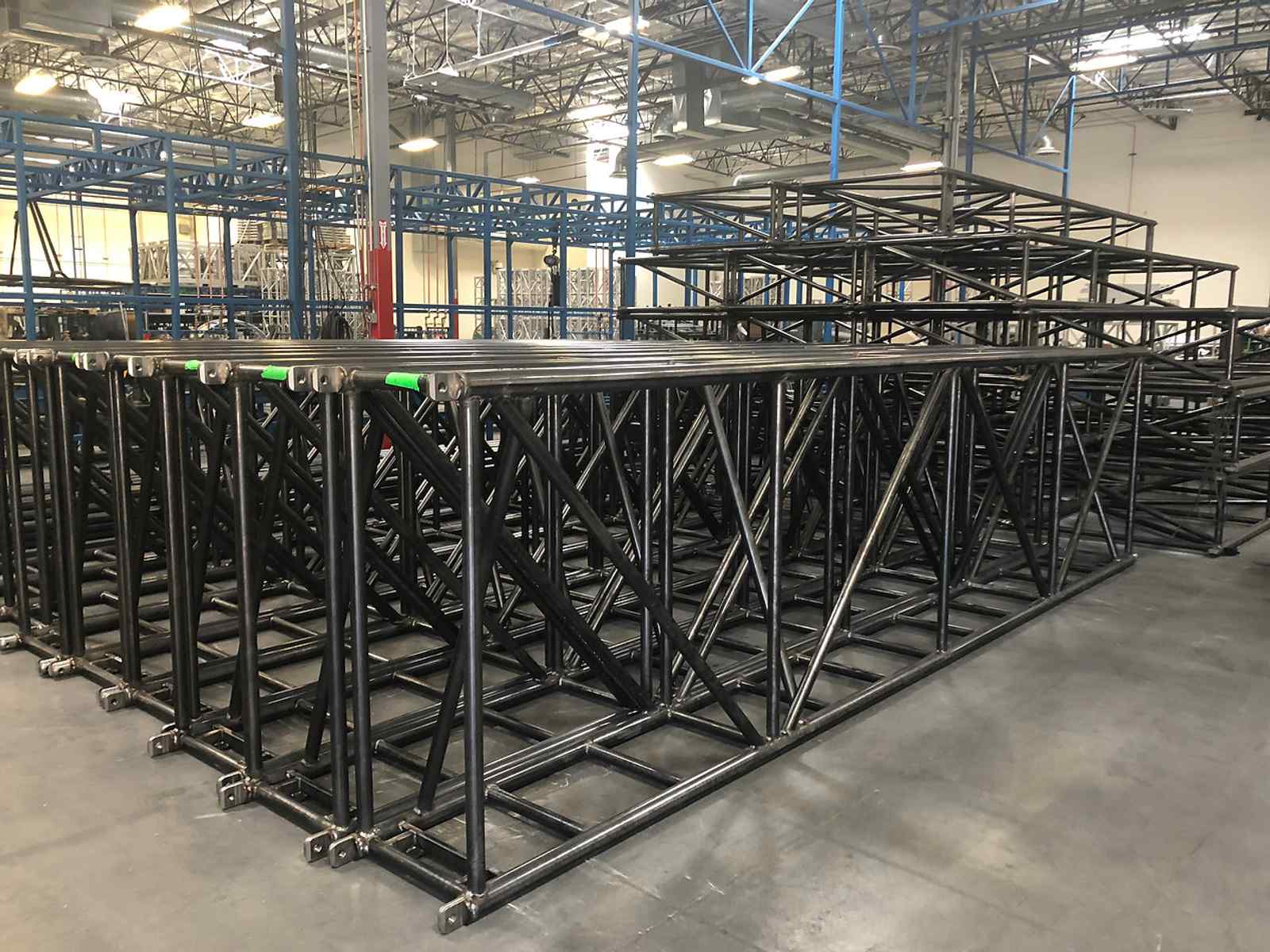

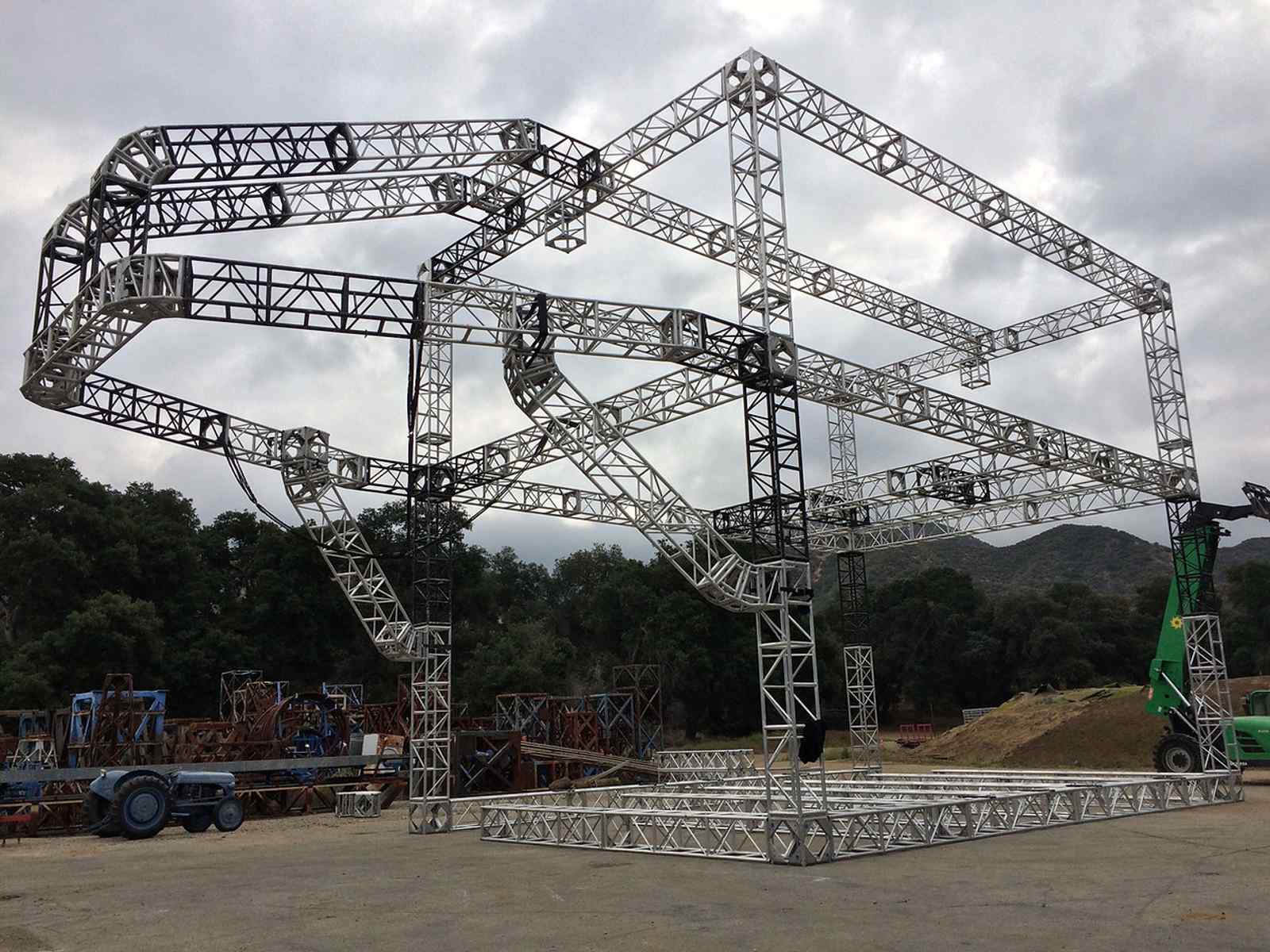

Monster Truss




Monster Truss
Product Info
- Largest and Strong Truss Offered
- Steel Construction
- Well Suited For
- Large Spans
- Outdoor Events
- Indoor Venues With Limited Rigging Capabilities
- Available In The Following Lengths:
- 5ft
- 10ft
- 20ft
- Custom Sizes Available Upon Request

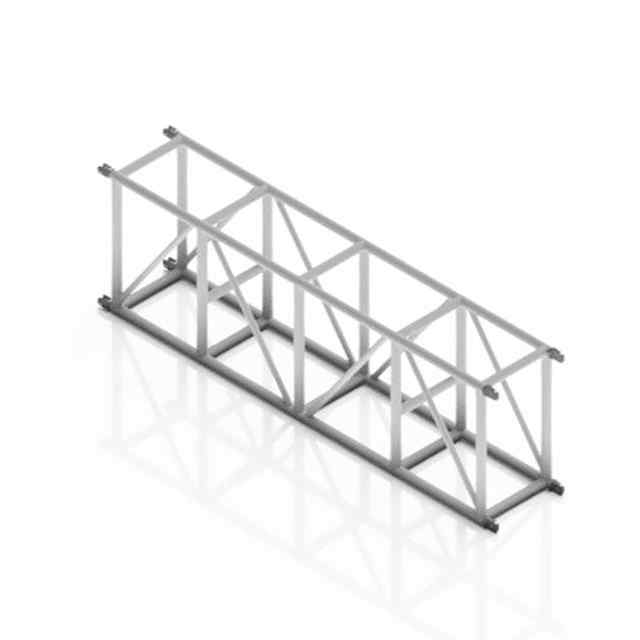

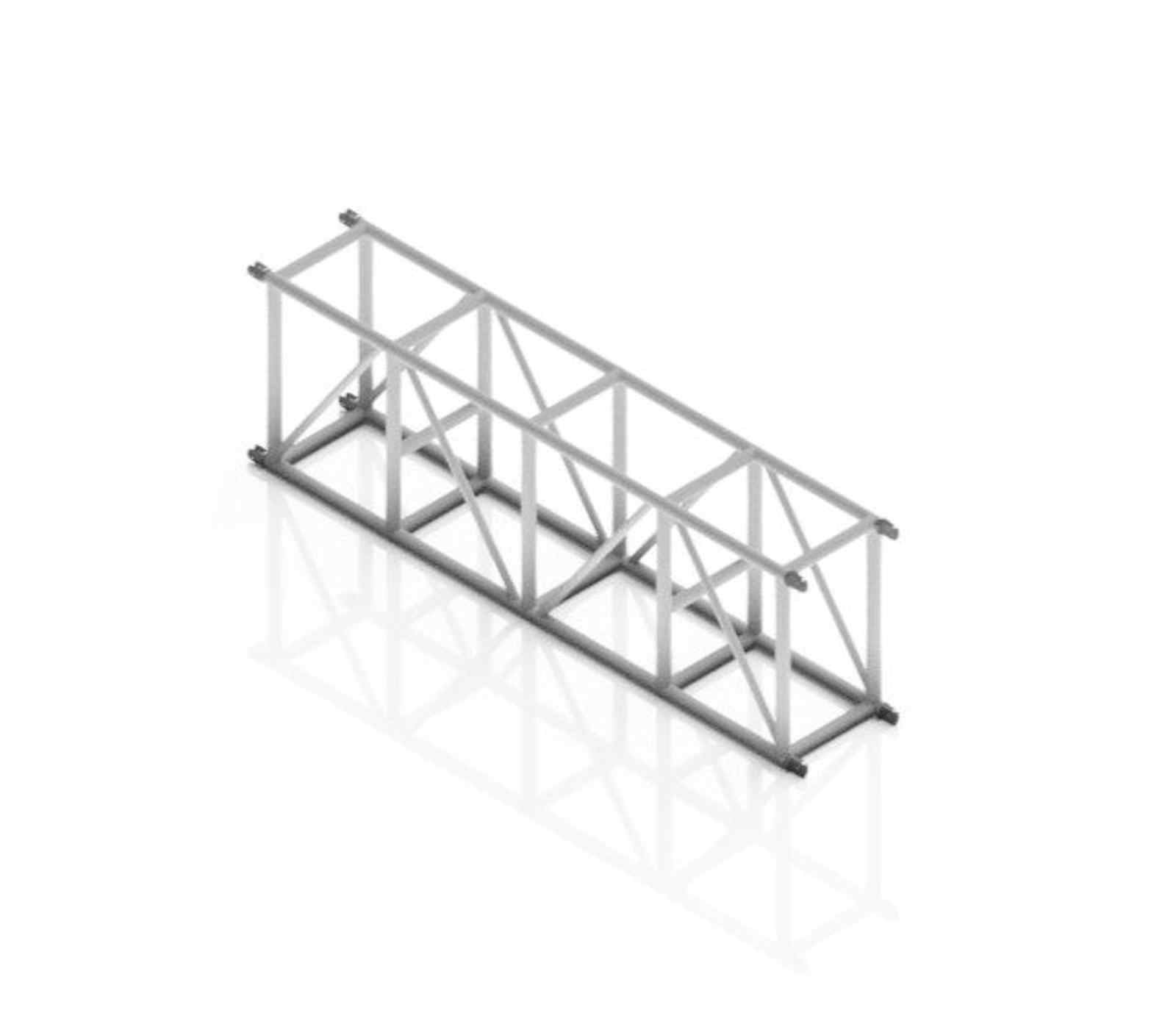

MGT Truss



MGT Truss
Product Info
- Used To Create Mother Grid
- Down Motors Can Be Mounted Inside Truss
- Travels 2 High, 5 Wide In Truck
- Standard Lengths:
- 2ft
- 4ft
- 5ft
- 8ft
- Custom Sizes Available Upon Request
- 2, 3, and 4 Way Corner Blocks Available
